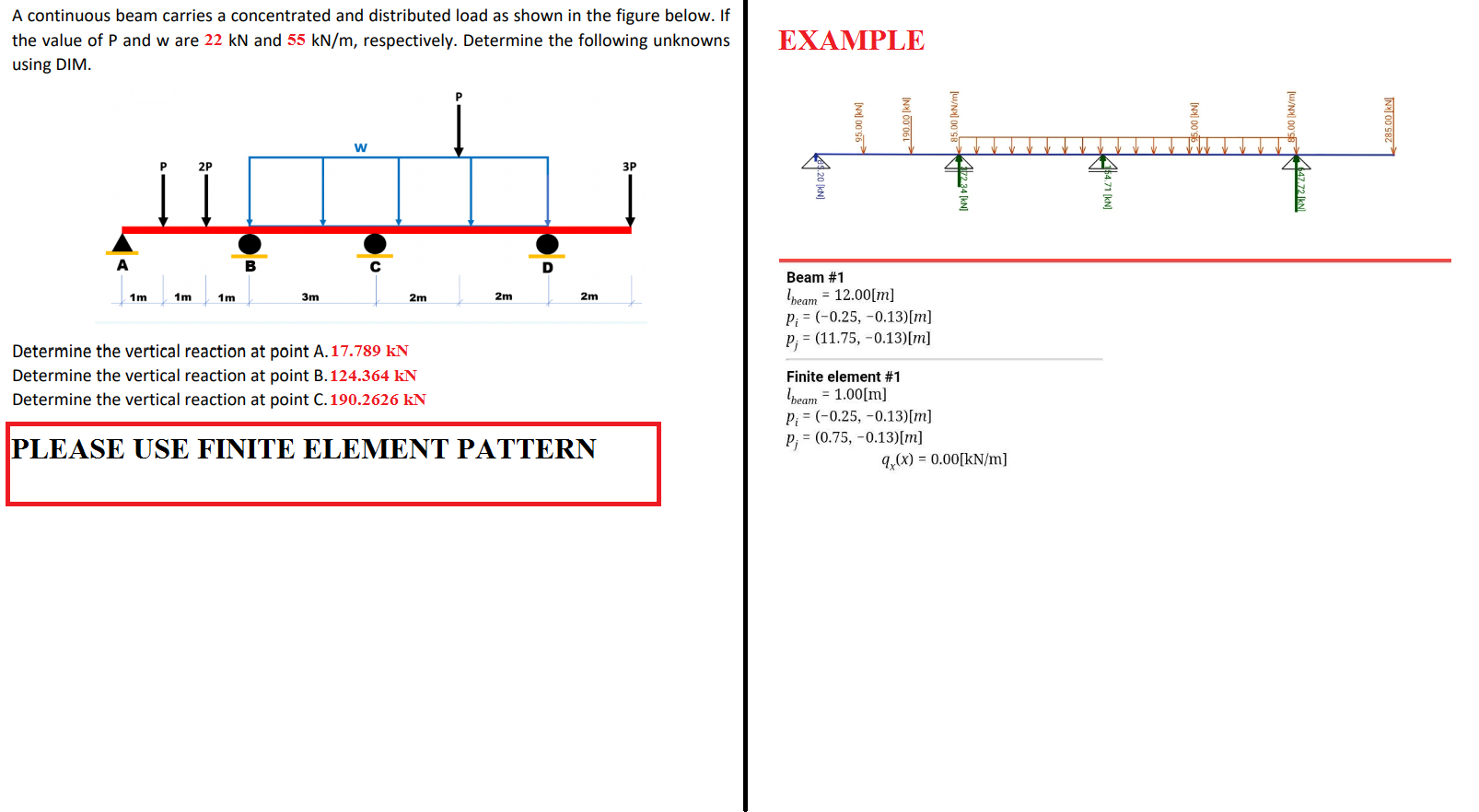

A continuous beam carries a concentrated and distributed load as shown in the figure below. If the value of P and w are

[answerhappygod]

A Continuous Beam Carries A Concentrated And Distributed Load As Shown In The Figure Below If The Value Of P And W Are 1 (235.81 KiB) Viewed 40 times

A continuous beam carries a concentrated and distributed load as shown in the figure below. If the value of P and w are 22 kN and 55 kN/m, respectively. Determine the following unknowns using DIM. 1m P 1m 2P 1m 3m W 2m Determine the vertical reaction at point A. 17.789 KN Determine the vertical reaction at point B.124.364 KN Determine the vertical reaction at point C. 190.2626 KN 2m 2m PLEASE USE FINITE ELEMENT PATTERN 3P EXAMPLE 41.20 (KN) 95.00 [kN] 190.00 [kN] Beam #1 beam = 12.00[m] P₁ = (-0.25, -0.13)[m] P₁ = (11.75, -0.13)[m] Finite element #1 beam = 1.00[m] P₁ = (-0.25, -0.13)[m] P₁ = (0.75, -0.13)[m] [NX] VE 285.00 [kN/m] q,(x) = 0.00[kN/m] 154.71 (KN) IN 22 20 85.00 [kN/m] 285.00 [kN]
