The cantilever beam is subjected to the point loads P₁ = 3.1 kN and P₂ = 5.9 kN.. Part A TB Determine the shear stress a

[answerhappygod]

The Cantilever Beam Is Subjected To The Point Loads P 3 1 Kn And P 5 9 Kn Part A Tb Determine The Shear Stress A 1 (28.13 KiB) Viewed 28 times

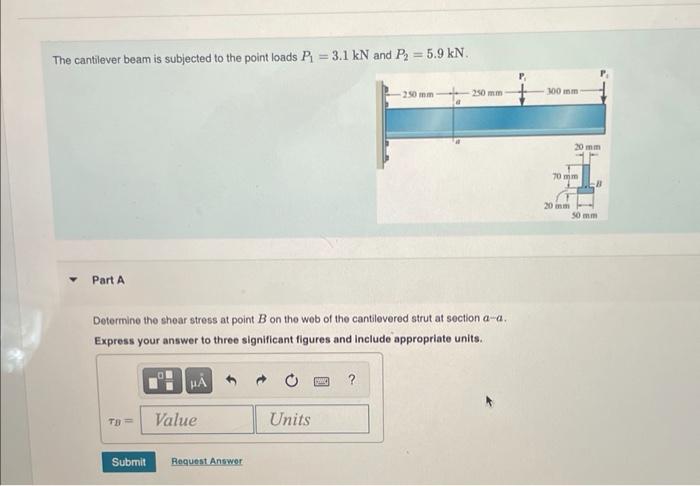

The cantilever beam is subjected to the point loads P₁ = 3.1 kN and P₂ = 5.9 kN.. Part A TB Determine the shear stress at point B on the web of the cantilevered strut at section a-a. Express your answer to three significant figures and include appropriate units. HÅ Value Submit Request Answer Units 250 mm - ? 250 mm 300 mm 20 mm 70 mm 20 m B 50 mm
