Problem #2: The beam shown supports its own self-weight of 0.5 kN/m, a uniform distributed live load of 1.2 kN/m, and a

[answerhappygod]

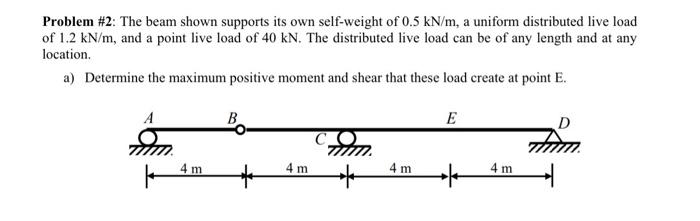

Problem 2 The Beam Shown Supports Its Own Self Weight Of 0 5 Kn M A Uniform Distributed Live Load Of 1 2 Kn M And A 1 (20.6 KiB) Viewed 38 times

Problem #2: The beam shown supports its own self-weight of 0.5 kN/m, a uniform distributed live load of 1.2 kN/m, and a point live load of 40 kN. The distributed live load can be of any length and at any location. a) Determine the maximum positive moment and shear that these load create at point E. A m B 4 m 4 m E 4 m D
