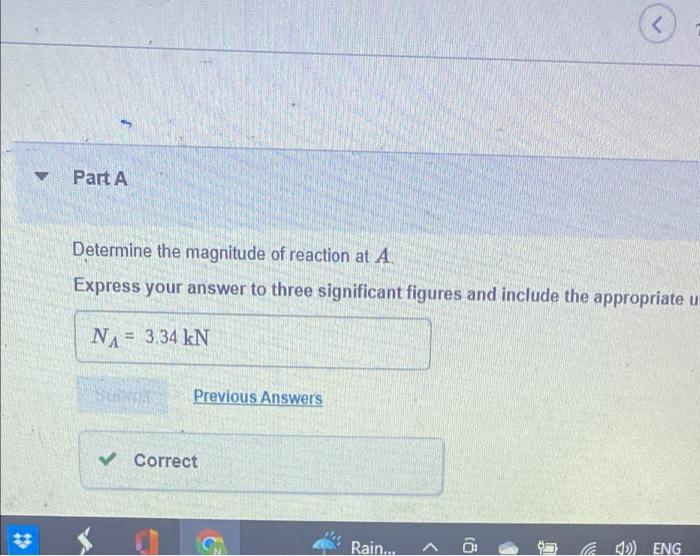

Part A Determine the magnitude of reaction at A. Express your answer to three significant figures and include the appropriate u NA 3.34 kN = Previous Answers ✓ Correct G Rain.... 01 3 {}} ENG

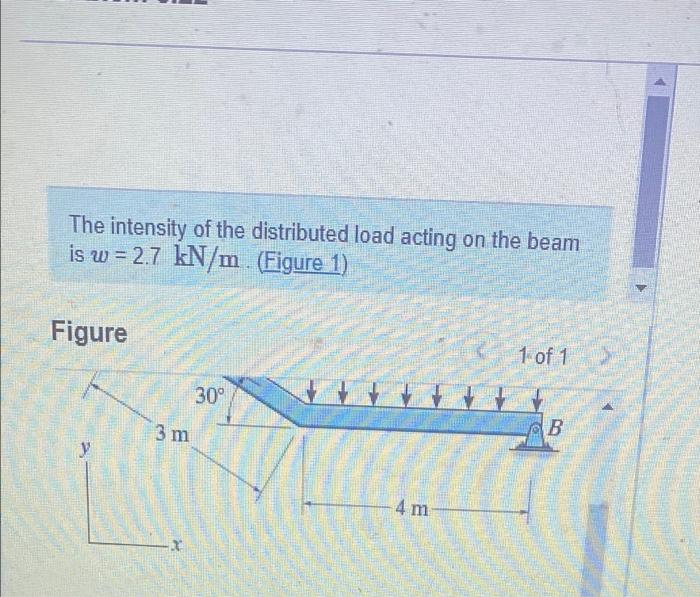

The intensity of the distributed load acting on the beam is w=2.7 kN/m. (Figure 1) Figure y 3 m -X 30° 4 m 1 of 1 A B B

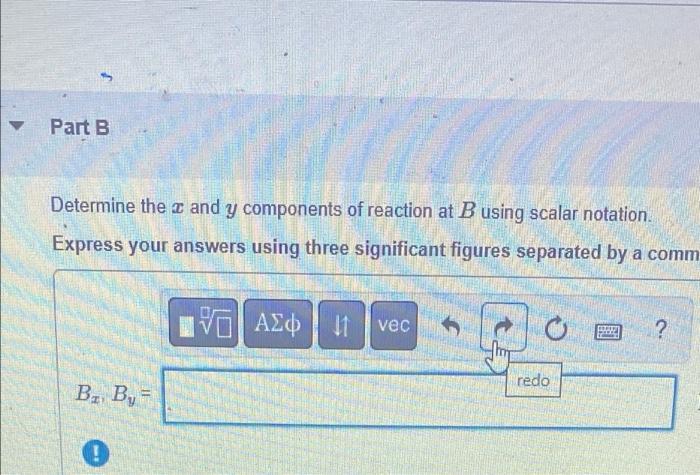

Part B Determine the x and y components of reaction at B using scalar notation. Express your answers using three significant figures separated by a comm B₂ By 0 15. ΑΣΦΑ 11 vec redo ?
