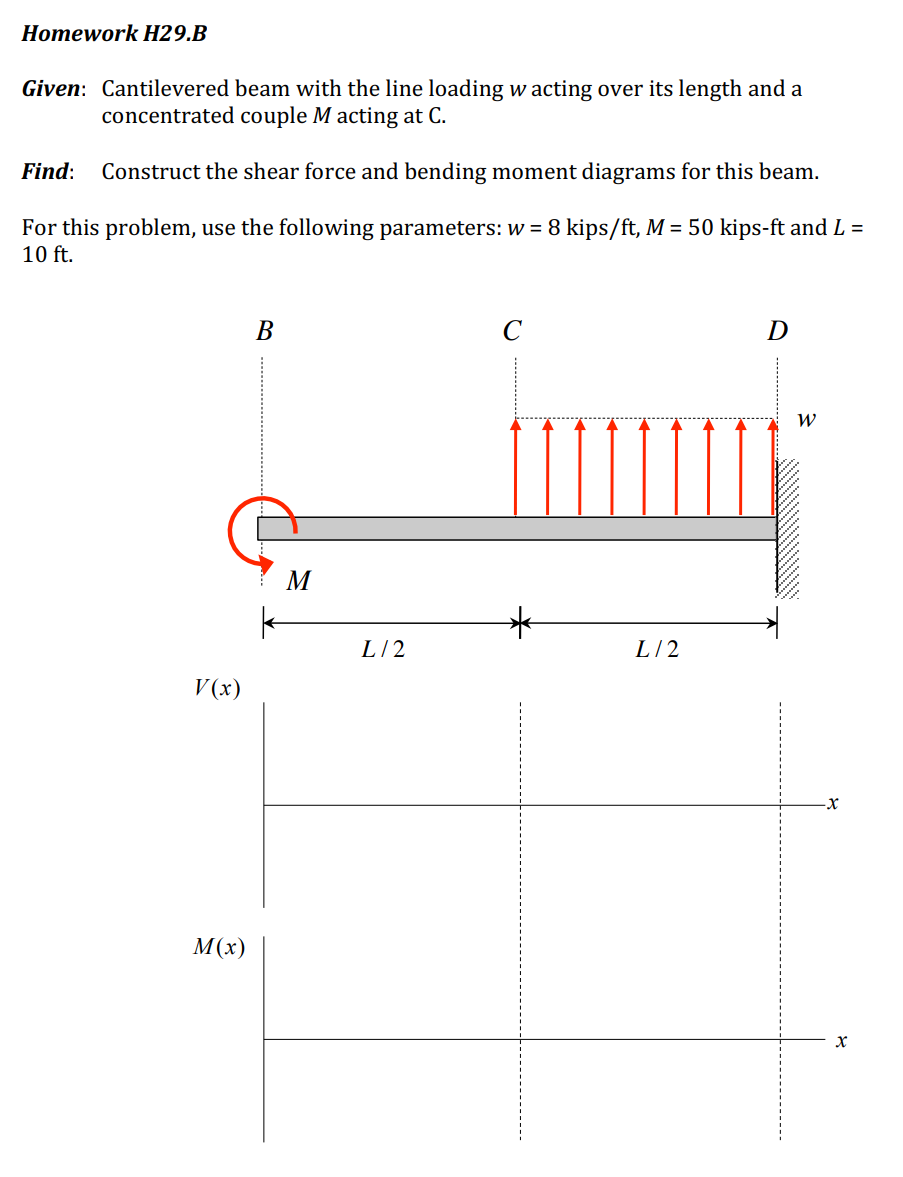

Homework H29.B Given: Cantilevered beam with the line loading w acting over its length and a concentrated couple M acting at C. Find: Construct the shear force and bending moment diagrams for this beam. For this problem, use the following parameters: w = 8 kips/ft, M = 50 kips-ft and L = 10 ft. V(x) M(x) B k L/2 C * L/2 D W -X X
