pls help with following:
a)draw fbd
b) draw shear and moment diagram
c) find greatest princi. normal stress in beam and greatest shear stress in beam

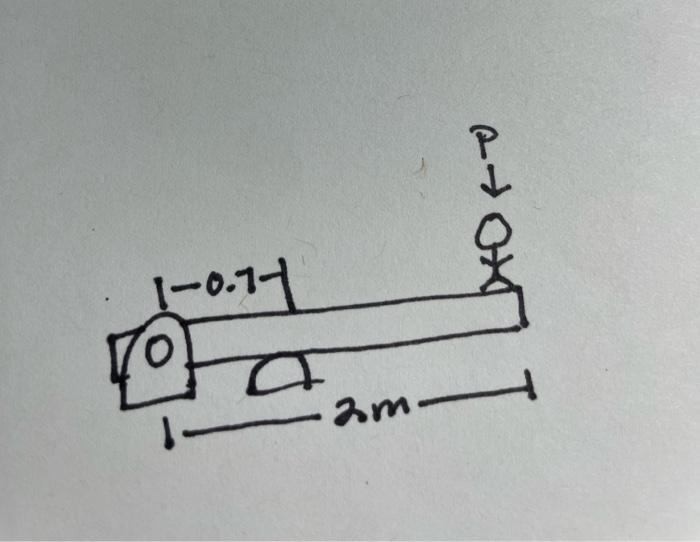

person standing at free end is 75kg
bord has solid cross section of 305mmx32mm
Pls Help With Following A Draw Fbd B Draw Shear And Moment Diagram C Find Greatest Princi Normal Stress In Beam And 1 (32.98 KiB) Viewed 18 times
Pls Help With Following A Draw Fbd B Draw Shear And Moment Diagram C Find Greatest Princi Normal Stress In Beam And 2 (32.98 KiB) Viewed 18 times
