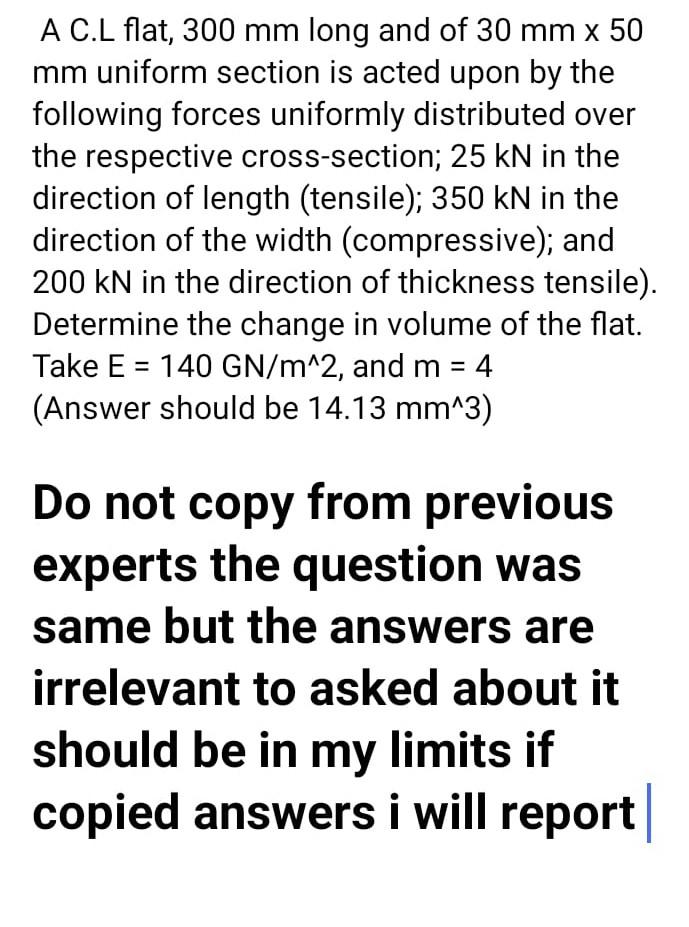

A C.L flat, 300 mm long and of 30 mm x 50 mm uniform section is acted upon by the following forces uniformly distributed over the respective cross-section; 25 kN in the direction of length (tensile); 350 kN in the direction of the width (compressive); and 200 KN in the direction of thickness tensile). Determine the change in volume of the flat. Take E = 140 GN/m^2, and m = 4 (Answer should be 14.13 mm^3) Do not copy from previous experts the question was same but the answers are irrelevant to asked about it should be in my limits if copied answers i will report
