Situation #2: A rectangular beam has the following properties: Width, b=400 mm 415 MPa Effective depth, d = 620 mm 22 MP

Post by answerhappygod »

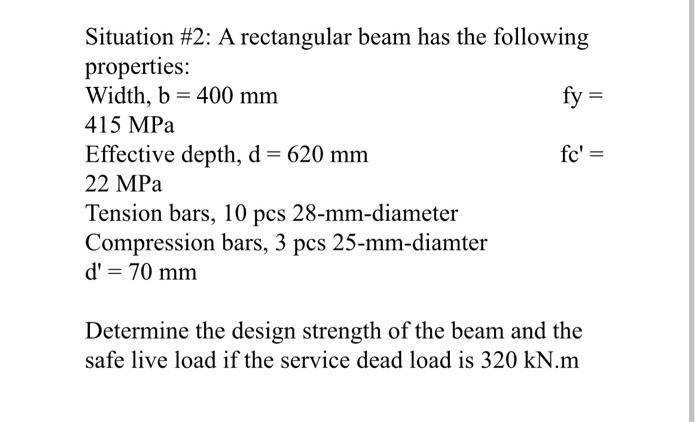

Situation 2 A Rectangular Beam Has The Following Properties Width B 400 Mm 415 Mpa Effective Depth D 620 Mm 22 Mp 1
Situation 2 A Rectangular Beam Has The Following Properties Width B 400 Mm 415 Mpa Effective Depth D 620 Mm 22 Mp 1 (35.03 KiB) Viewed 24 times
Situation #2: A rectangular beam has the following properties: Width, b=400 mm 415 MPa Effective depth, d = 620 mm 22 MPa Tension bars, 10 pcs 28-mm-diameter Compression bars, 3 pcs 25-mm-diamter d' = 70 mm fy= fc' = Determine the design strength of the beam and the safe live load if the service dead load is 320 kN.m
