QUESTION 2 Problem 2: (6+4+8 points) Consider the beam shown below. Evaluate the following using the slope deflection me

[answerhappygod]

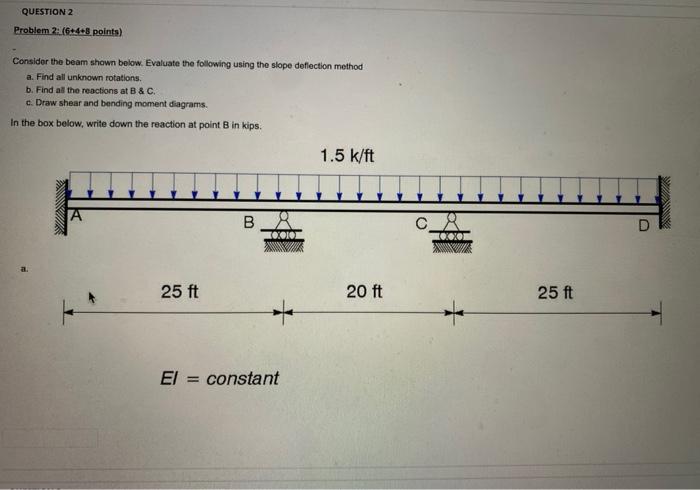

Question 2 Problem 2 6 4 8 Points Consider The Beam Shown Below Evaluate The Following Using The Slope Deflection Me 1 (32.94 KiB) Viewed 22 times

QUESTION 2 Problem 2: (6+4+8 points) Consider the beam shown below. Evaluate the following using the slope deflection method a. Find all unknown rotations. b. Find all the reactions at B & C. c. Draw shear and bending moment diagrams. In the box below, write down the reaction at point B in kips. 25 ft B El = constant 1.5 k/ft 20 ft C 25 ft
