Q1 (6 Points): Consider the stress-strain curve shown to the right. Based on the stress-strain curve, calculate or ident

[answerhappygod]

Q1 6 Points Consider The Stress Strain Curve Shown To The Right Based On The Stress Strain Curve Calculate Or Ident 1 (34.52 KiB) Viewed 32 times

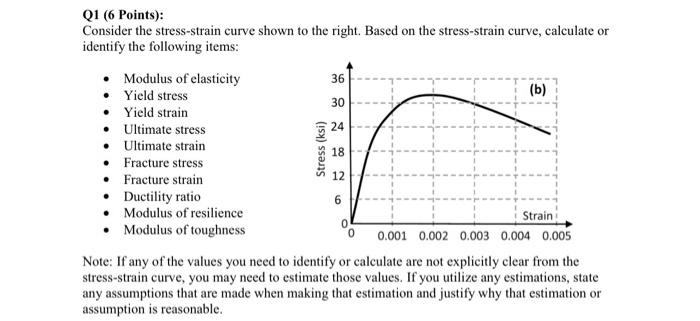

Q1 (6 Points): Consider the stress-strain curve shown to the right. Based on the stress-strain curve, calculate or identify the following items: Modulus of elasticity • Yield stress Yield strain • Ultimate stress • Ultimate strain Fracture stress Fracture strain • Ductility ratio • Modulus of resilience • Modulus of toughness Stress (ksi) 36 30 24 18 12 6 (b) Strain 0.001 0.002 0.003 0.004 0.005 Note: If any of the values you need to identify or calculate are not explicitly clear from the stress-strain curve, you may need to estimate those values. If you utilize any estimations, state any assumptions that are made when making that estimation and justify why that estimation or assumption is reasonable.
