The figure shows a pump delivering 840 L/min of crude oil (sg = 0.85) from an underground storage drum to the first stag

Post by answerhappygod »

The Figure Shows A Pump Delivering 840 L Min Of Crude Oil Sg 0 85 From An Underground Storage Drum To The First Stag 1
The Figure Shows A Pump Delivering 840 L Min Of Crude Oil Sg 0 85 From An Underground Storage Drum To The First Stag 1 (38.52 KiB) Viewed 25 times

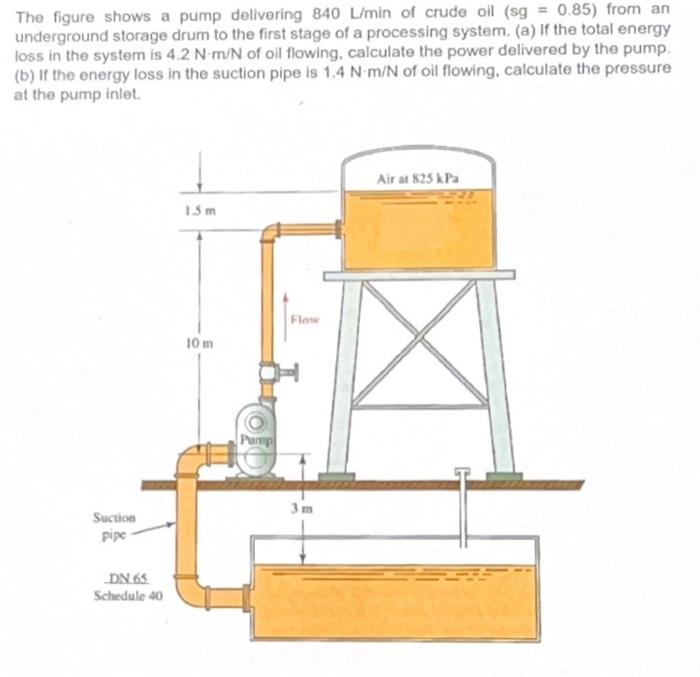

The figure shows a pump delivering 840 L/min of crude oil (sg = 0.85) from an underground storage drum to the first stage of a processing system. (a) If the total energy loss in the system is 4.2 N-m/N of oil flowing, calculate the power delivered by the pump. (b) If the energy loss in the suction pipe is 1.4 N-m/N of oil flowing, calculate the pressure at the pump inlet. Suction pipe DN 65 Schedule 40 1.5m 10 m Flow LOD Pump 3m Air at 825 kPa
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
