Exercise No. 4: Using the virtual work method, determine: a. The internal forces in each bar. 4H 30 KN Exercise No. 5: T

[answerhappygod]

Exercise No 4 Using The Virtual Work Method Determine A The Internal Forces In Each Bar 4h 30 Kn Exercise No 5 T 1 (20.01 KiB) Viewed 25 times

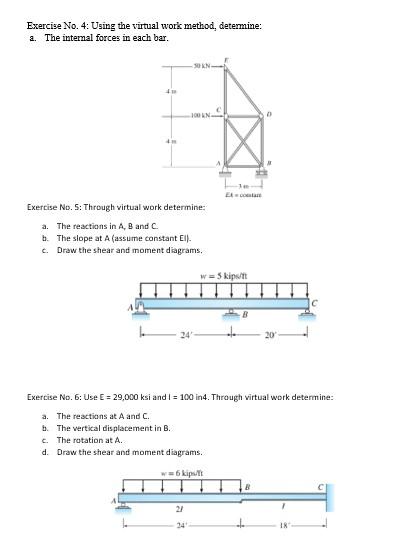

Exercise No. 4: Using the virtual work method, determine: a. The internal forces in each bar. 4H 30 KN Exercise No. 5: Through virtual work determine: a. The reactions in A, B and C. b. The slope at A (assume constant El). c. Draw the shear and moment diagrams, 100 KN. 28 24 Exercise No. 6: Use E = 29,000 ksi and 1= 100 in4. Through virtual work determine: a. The reactions at A and C. b. The vertical displacement in B. c. The rotation at A. d. Draw the shear and moment diagrams. w=6 kips/lt -100 Et conta w=5 kips/f
