Exercise No. 1: From the following beam, using the virtual work method, determine: a. The vertical displacement in B. b.

[answerhappygod]

Exercise No 1 From The Following Beam Using The Virtual Work Method Determine A The Vertical Displacement In B B 1 (28.26 KiB) Viewed 67 times

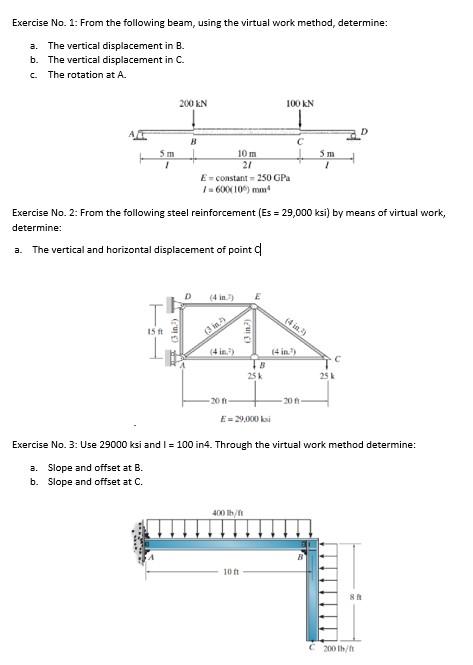

Exercise No. 1: From the following beam, using the virtual work method, determine: a. The vertical displacement in B. b. The vertical displacement in C. c. The rotation at A. m 15 ft I 200 KN (3 in) B D E-constant 250 GPa I=600(10) mm Exercise No. 2: From the following steel reinforcement (Es = 29,000 ksi) by means of virtual work, determine: a. The vertical and horizontal displacement of point (4 in) (3 in) 10 m 21 (4 in) -20 ft- B E=29,000 ki 400 lb/ft 100 KN 25 k 1011 C (4 in.) (4 in ¹) 5m 1 -20 f Exercise No. 3: Use 29000 ksi and I = 100 in4. Through the virtual work method determine: a. Slope and offset at B. b. Slope and offset at C. 25 k 8h 200th/ft
