Question 3 (25marks) A continuous beam ABC, 10m long rests on three supports A, B and C at the same level and is loaded

Post by answerhappygod »

Question 3 25marks A Continuous Beam Abc 10m Long Rests On Three Supports A B And C At The Same Level And Is Loaded 1
Question 3 25marks A Continuous Beam Abc 10m Long Rests On Three Supports A B And C At The Same Level And Is Loaded 1 (34.21 KiB) Viewed 37 times

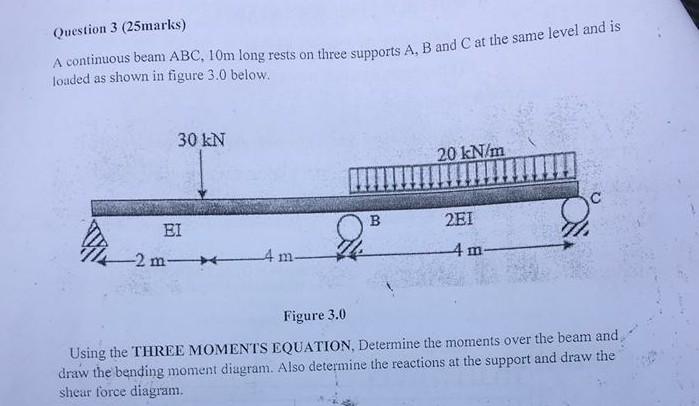

Question 3 (25marks) A continuous beam ABC, 10m long rests on three supports A, B and C at the same level and is loaded as shown in figure 3.0 below. 30 kN EI -2 m- 4 m. B 20 kN/m 2EI 4 m. Figure 3.0 Using the THREE MOMENTS EQUATION, Determine the moments over the beam and draw the bending moment diagram. Also determine the reactions at the support and draw the shear force diagram.
