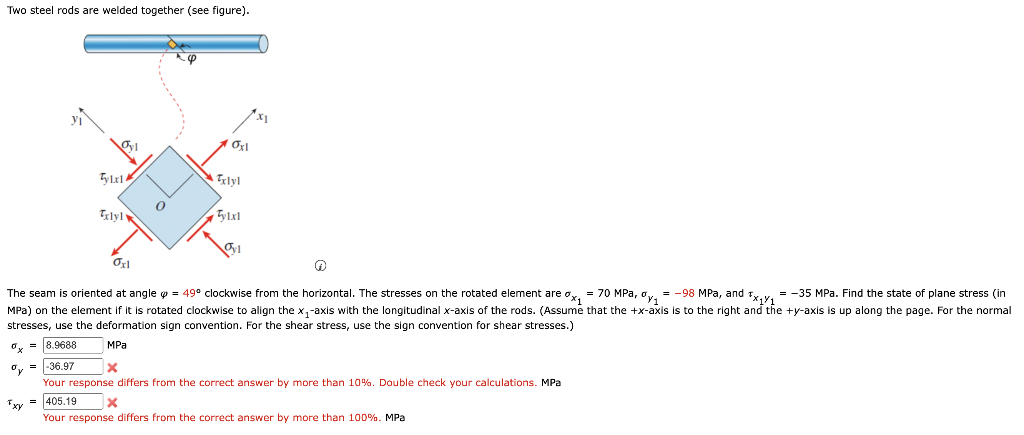

Two steel rods are welded together (see figure). ºy 65 TXV Tylx14 Trlyly 10x1 Telyl Tylxl y1 Oxl = -35 MPa. Find the state of plane stress (in The seam is oriented at angle = 49° clockwise from the horizontal. The stresses on the rotated element are 0x₁ = 70 MPa, oy₁ = -98 MPa, and Fx1Y1 MPa) on the element if it is rotated clockwise to align the x,-axis with the longitudinal x-axis of the rods. (Assume that the +x-axis is to the right and the +y-axis is up along the page. For the normal stresses, use the deformation sign convention. For the shear stress, use the sign convention for shear stresses.) 8.9688 MPa x X1 -36.97 Your response differs from the correct answer by more than 10%. Double check your calculations. MPa 405.19 X Your response differs from the correct answer by more than 100%. MPa
