[E3] For the retaining wall shown below, determine the force per unit length of the wall for Rankine's active state. Als

[answerhappygod]

E3 For The Retaining Wall Shown Below Determine The Force Per Unit Length Of The Wall For Rankine S Active State Als 1 (21.31 KiB) Viewed 44 times

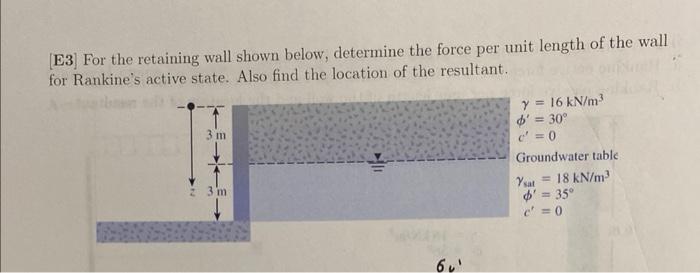

[E3] For the retaining wall shown below, determine the force per unit length of the wall for Rankine's active state. Also find the location of the resultant. 3 m 3 m 60⁰ y = 16 kN/m³ d' = 30° c' = 0 Groundwater table <= 18 kN/m³ Ysat $' = 35° c² = 0
