Q2. Determine the member end moments and reactions for the frame for the loading shown in the figure and the support set

Post by answerhappygod »

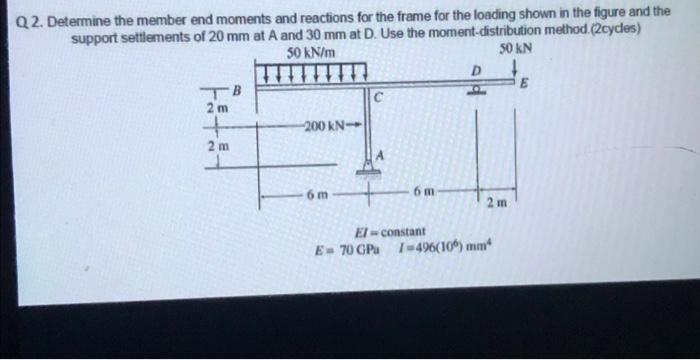

Q2 Determine The Member End Moments And Reactions For The Frame For The Loading Shown In The Figure And The Support Set 1
Q2 Determine The Member End Moments And Reactions For The Frame For The Loading Shown In The Figure And The Support Set 1 (27.59 KiB) Viewed 56 times
Q2. Determine the member end moments and reactions for the frame for the loading shown in the figure and the support settlements of 20 mm at A and 30 mm at D. Use the moment-distribution method (2cycles) 50 kN/m 50 KN 2m + B 2m 1 ELE -200 kN- -6m 6 m 14 El-constant E-70 GPa 1-496(10) mm 2 m E
