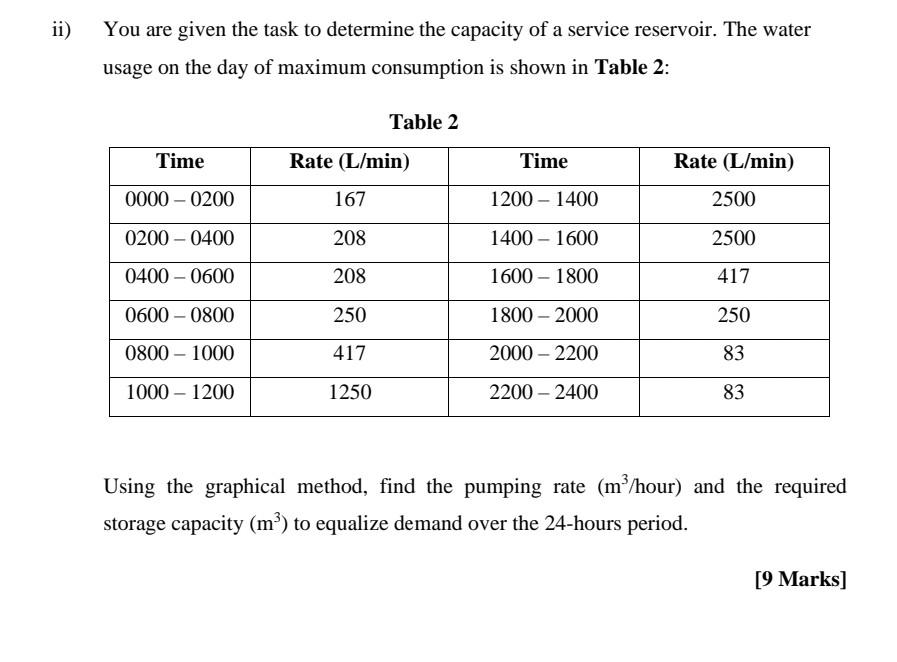

ii) You are given the task to determine the capacity of a service reservoir. The water usage on the day of maximum consumption is shown in Table 2: Time 0000 - 0200 0200 -0400 0400-0600 0600-0800 0800-1000 1000 - 1200 Table 2 Rate (L/min) 167 208 208 250 417 1250 Time 1200-1400 1400-1600 1600-1800 1800-2000 2000 - 2200 2200 - 2400 Rate (L/min) 2500 2500 417 250 83 83 Using the graphical method, find the pumping rate (m³/hour) and the required storage capacity (m³) to equalize demand over the 24-hours period. [9 Marks]
