For what value M of the clockwise couple will the horizontal component Ax of the pin reaction at A be zero? If a couple

[answerhappygod]

For What Value M Of The Clockwise Couple Will The Horizontal Component Ax Of The Pin Reaction At A Be Zero If A Couple 1 (64.5 KiB) Viewed 50 times

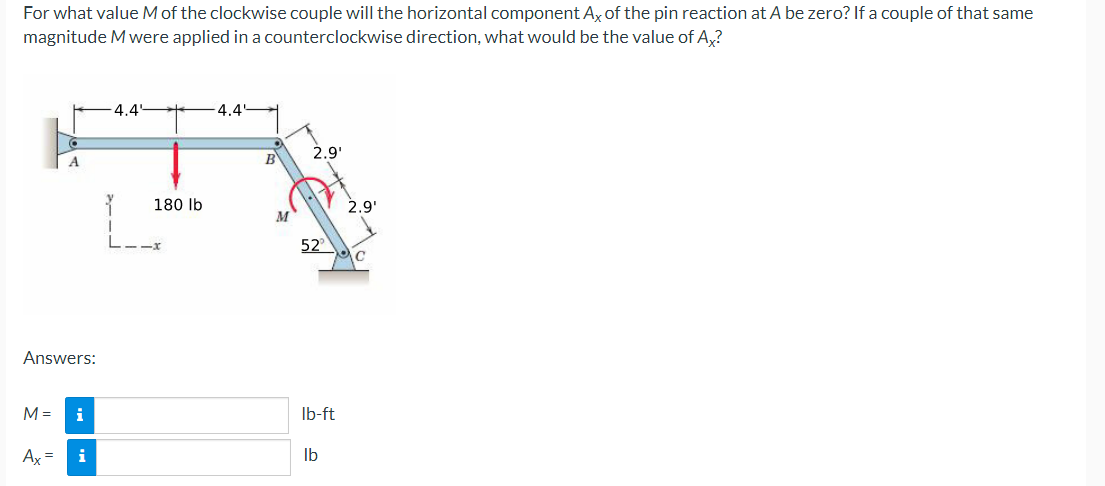

For what value M of the clockwise couple will the horizontal component Ax of the pin reaction at A be zero? If a couple of that same magnitude M were applied in a counterclockwise direction, what would be the value of Ax? Answers: M = A Ax= i i 4.4 180 lb -x 4.4 B 2.9¹ 52 lb-ft lb 2.9¹
