The Frame ABCDEF, shown in Figure Q2, has two fixed supports at A and F respectively. Joints B, D and E are internal hin

Post by answerhappygod »

The Frame Abcdef Shown In Figure Q2 Has Two Fixed Supports At A And F Respectively Joints B D And E Are Internal Hin 1
The Frame Abcdef Shown In Figure Q2 Has Two Fixed Supports At A And F Respectively Joints B D And E Are Internal Hin 1 (26.95 KiB) Viewed 63 times

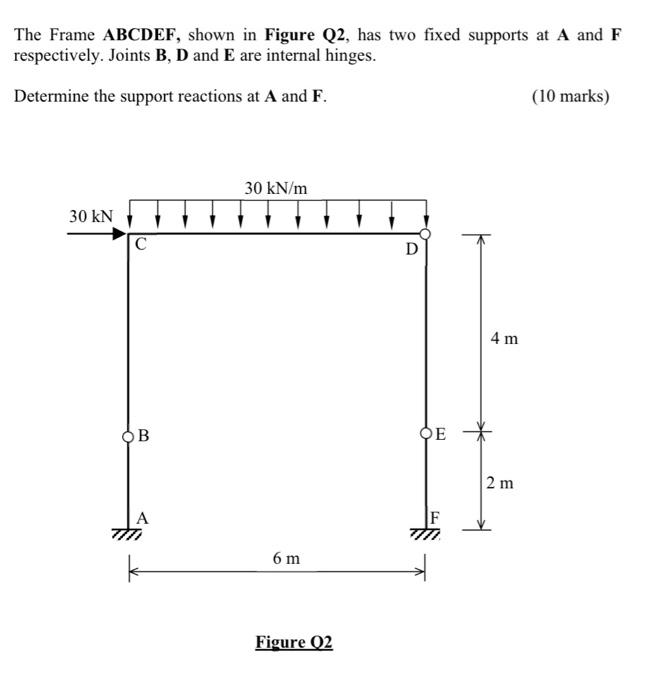

The Frame ABCDEF, shown in Figure Q2, has two fixed supports at A and F respectively. Joints B, D and E are internal hinges. Determine the support reactions at A and F. 30 kN C B A 30 kN/m 6 m Figure (2 D OE 4 m 2 m (10 marks)
