The frame supports a distributed load and tension force of P = 150 lb, as shown in the figure below. Part A Determine th

[answerhappygod]

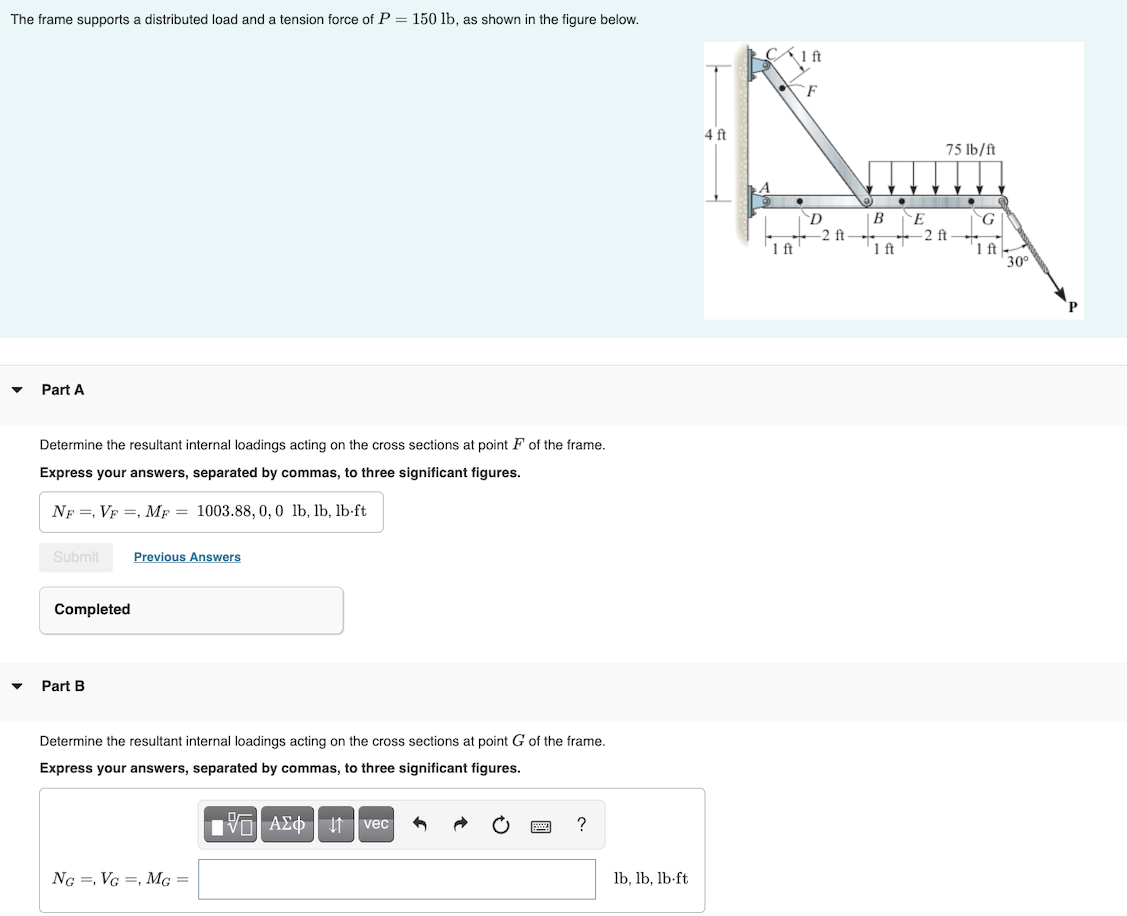

The Frame Supports A Distributed Load And Tension Force Of P 150 Lb As Shown In The Figure Below Part A Determine Th 1 (139.54 KiB) Viewed 43 times

The frame supports a distributed load and tension force of P = 150 lb, as shown in the figure below. Part A Determine the resultant internal loadings acting on the cross sections at point F of the frame. Express your answers, separated by commas, to three significant figures. NF, VF, MF = 1003.88, 0, 0 lb, lb, lb-ft Submit Completed Part B Previous Answers Determine the resultant internal loadings acting on the cross sections at point G of the frame. Express your answers, separated by commas, to three significant figures. 15| ΑΣΦ | 11 | vec NG, VG, Mc = ? lb, lb, lb-ft 4 ft CÁlft 1 ft D -2 ft ● BE 75 lb/ft + -2 ft 1 ft G 1 ft- 30⁰
