Homework Question 13: 6.69 Water flows steadily through the reducing elbow shown. The elbow is smooth and short, and the

Post by answerhappygod »

Homework Question 13 6 69 Water Flows Steadily Through The Reducing Elbow Shown The Elbow Is Smooth And Short And The 1
Homework Question 13 6 69 Water Flows Steadily Through The Reducing Elbow Shown The Elbow Is Smooth And Short And The 1 (23.77 KiB) Viewed 81 times

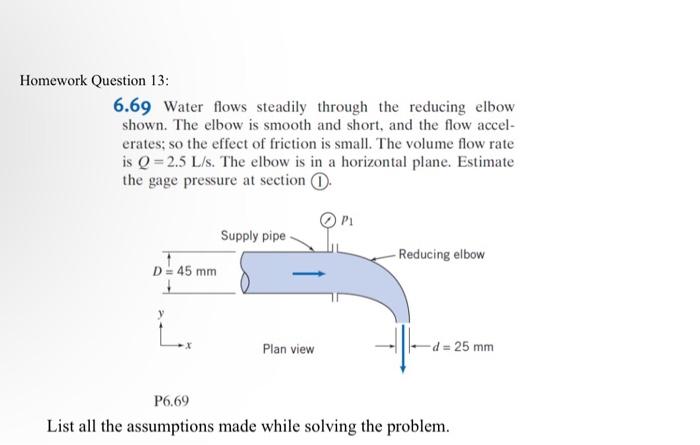

Homework Question 13: 6.69 Water flows steadily through the reducing elbow shown. The elbow is smooth and short, and the flow accel- erates; so the effect of friction is small. The volume flow rate is Q=2.5 L/s. The elbow is in a horizontal plane. Estimate the gage pressure at section 1. D = 45 mm Lx Supply pipe Plan view -Reducing elbow -||-4=2 -d = 25 mm P6.69 List all the assumptions made while solving the problem.
