Moist air undergoes a cooling and dehumidification process at a pressure of 101.325 kPa from an initial state 30°C db an

[answerhappygod]

Moist Air Undergoes A Cooling And Dehumidification Process At A Pressure Of 101 325 Kpa From An Initial State 30 C Db An 1 (31.23 KiB) Viewed 55 times

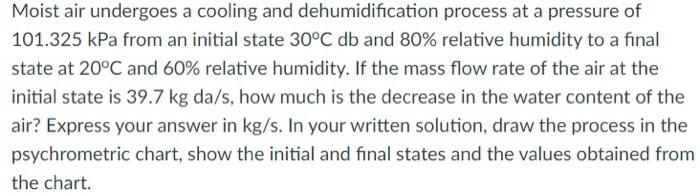

Moist air undergoes a cooling and dehumidification process at a pressure of 101.325 kPa from an initial state 30°C db and 80% relative humidity to a final state at 20°C and 60% relative humidity. If the mass flow rate of the air at the initial state is 39.7 kg da/s, how much is the decrease in the water content of the air? Express your answer in kg/s. In your written solution, draw the process in the psychrometric chart, show the initial and final states and the values obtained from the chart.
