Question 16 For the binary cycle shown, the enthalpies are h1 = 3,195 kJ/kg; h2 = 2,265 kJ/kg; h3 = 178 kJ/kg; h4 = 184

[answerhappygod]

Question 16 For The Binary Cycle Shown The Enthalpies Are H1 3 195 Kj Kg H2 2 265 Kj Kg H3 178 Kj Kg H4 184 1 (62.82 KiB) Viewed 43 times

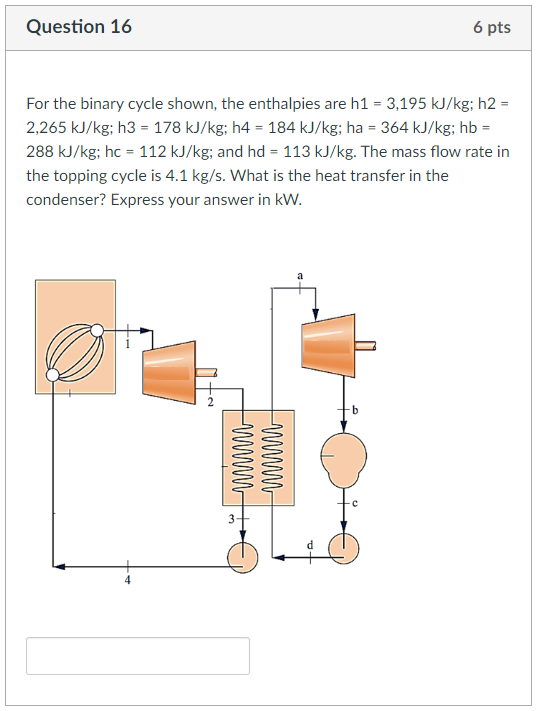

Question 16 For the binary cycle shown, the enthalpies are h1 = 3,195 kJ/kg; h2 = 2,265 kJ/kg; h3 = 178 kJ/kg; h4 = 184 kJ/kg; ha = 364 kJ/kg; hb = 288 kJ/kg; hc = 112 kJ/kg; and hd = 113 kJ/kg. The mass flow rate in the topping cycle is 4.1 kg/s. What is the heat transfer in the condenser? Express your answer in kW. wwwww wwwww 6 pts 3
