A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u = 1.0 mm

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u = 1.0 mm

Post by answerhappygod »

A Thin Triangular Plate Pqr Forms A Right Angle At Point Q During Deformation Point Q Moves To The Left By U 1 0 Mm 1
A Thin Triangular Plate Pqr Forms A Right Angle At Point Q During Deformation Point Q Moves To The Left By U 1 0 Mm 1 (37.44 KiB) Viewed 24 times

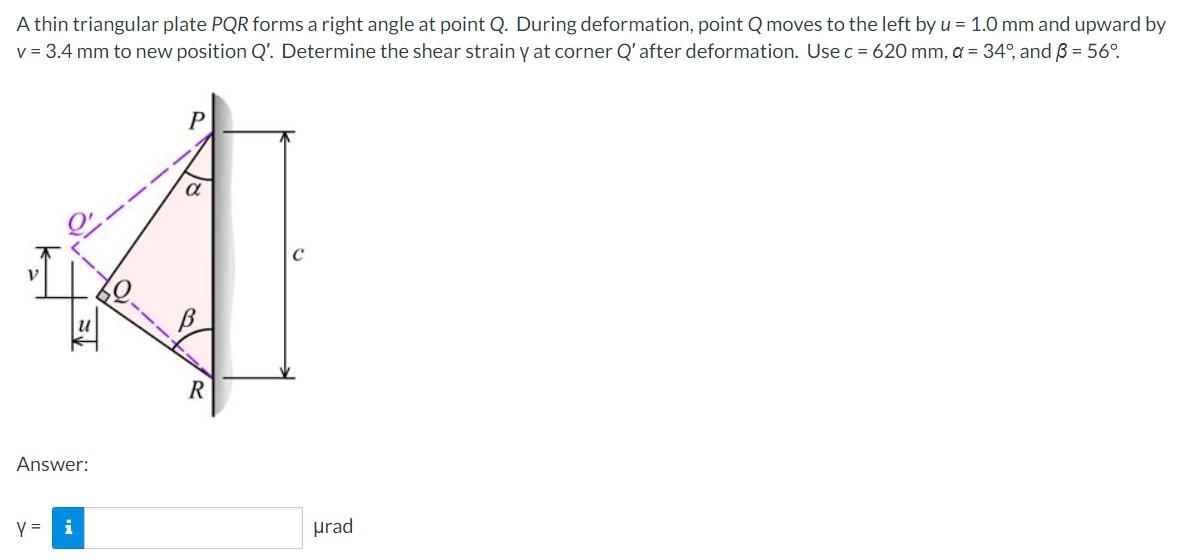

A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u = 1.0 mm and upward by v = 3.4 mm to new position Q'. Determine the shear strain y at corner Q' after deformation. Use c = 620 mm, a = 34°, and 3 = 56°. 4 R Answer: y = i urad
