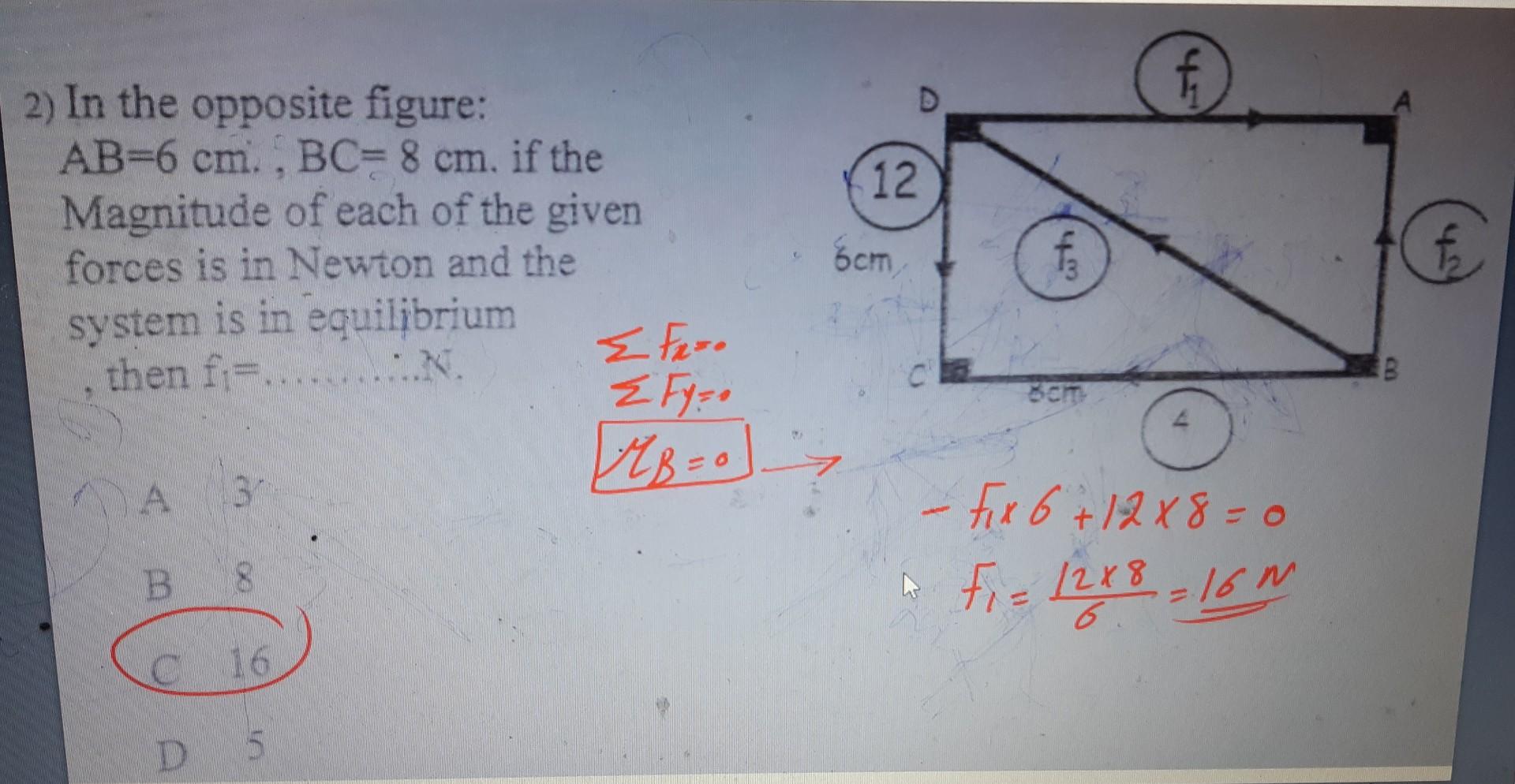

2) In the opposite figure: AB=6 cm., BC= 8 cm. if the Magnitude of each of the given forces is in Newton and the system
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2) In the opposite figure: AB=6 cm., BC= 8 cm. if the Magnitude of each of the given forces is in Newton and the system
2) In the opposite figure: AB=6 cm., BC= 8 cm. if the Magnitude of each of the given forces is in Newton and the system is in equilibrium then fi=........N A B 3 D 8 C 16 5 Σ Faso < Fy=0 MB=0. 12 6cm f₂ Bom f 4 - F₁x 6 + 12x8 = 0 ~ F₁ = 12x8 = 16M B f
