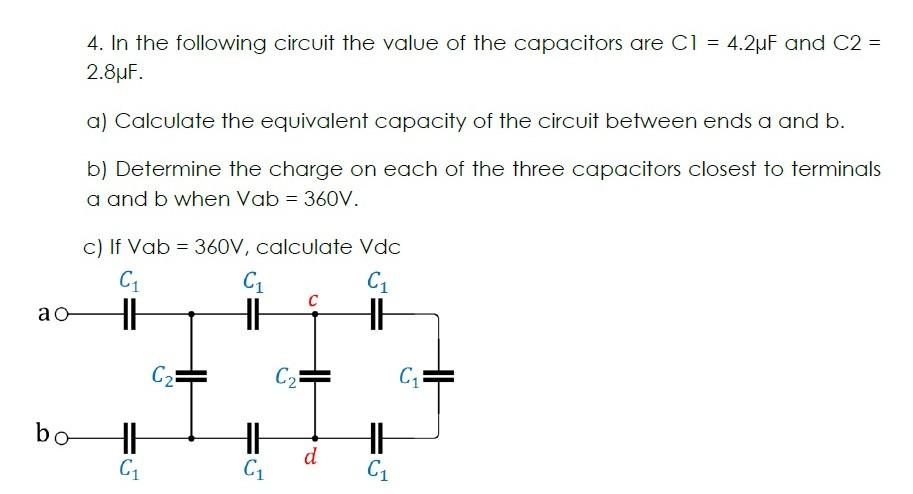

ao- bo 4. In the following circuit the value of the capacitors are C1 = 4.2μF and C2 = 2.8μF. a) Calculate the equivalent capacity of the circuit between ends a and b. b) Determine the charge on each of the three capacitors closest to terminals a and b when Vab = 360V. c) If Vab= 360V, calculate Vdc C₁ C₁ HH HH C₁ C₂= C₁ HH C₁ C₂ C d HH C₁ C₁
