= R10-5. The 60° strain rosette is mounted on a beam. The following readings are obtained for each gage: €a = 600(10¯),

Post by answerhappygod »

R10 5 The 60 Strain Rosette Is Mounted On A Beam The Following Readings Are Obtained For Each Gage A 600 10 1
R10 5 The 60 Strain Rosette Is Mounted On A Beam The Following Readings Are Obtained For Each Gage A 600 10 1 (129.8 KiB) Viewed 40 times

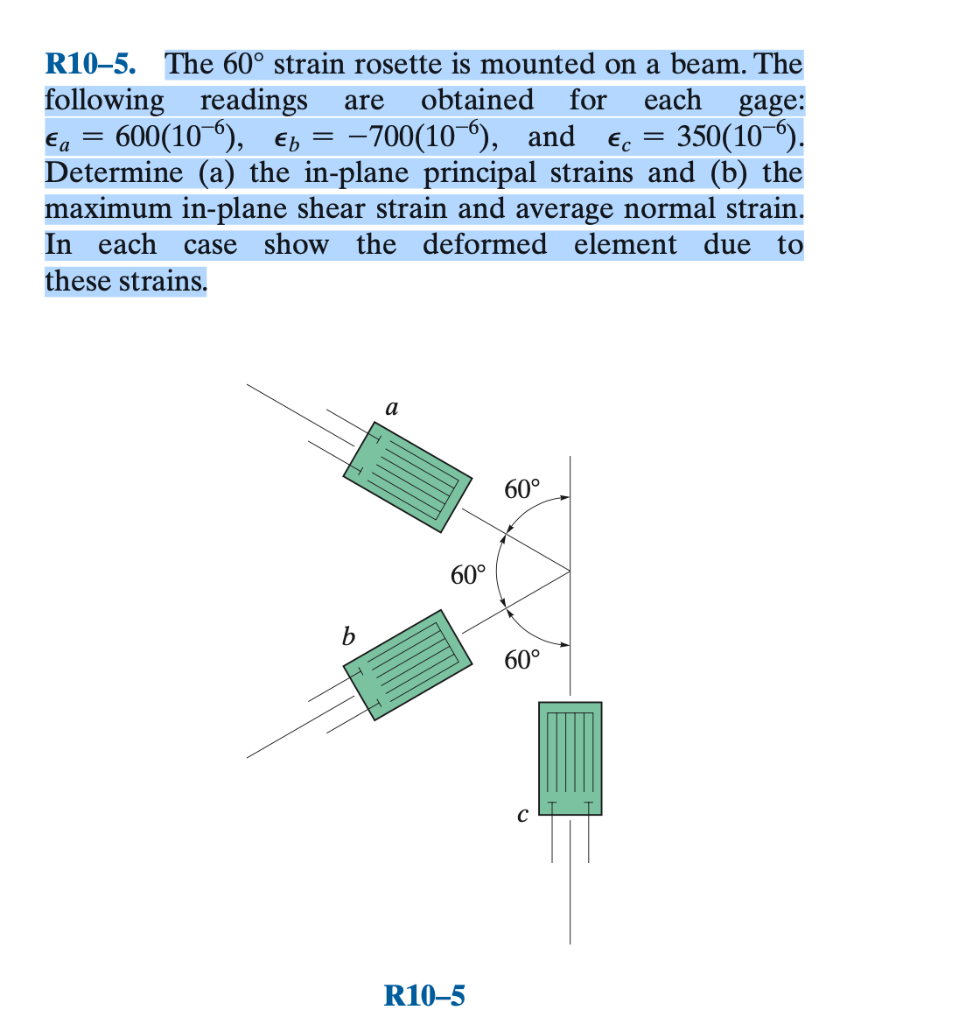

= R10-5. The 60° strain rosette is mounted on a beam. The following readings are obtained for each gage: €a = 600(10¯), b = −700(10¯), and € 350(10-6). Determine (a) the in-plane principal strains and (b) the maximum in-plane shear strain and average normal strain. In each case show the deformed element due to these strains. b a 60° R10-5 60° 60°
