X 40 kN/m 6.0 m B 3.0 m 75 kN i) Find the reactions at A. Ax The beam above is supported by a pin at A and a roller at B

[answerhappygod]

X 40 Kn M 6 0 M B 3 0 M 75 Kn I Find The Reactions At A Ax The Beam Above Is Supported By A Pin At A And A Roller At B 1 (292.57 KiB) Viewed 46 times

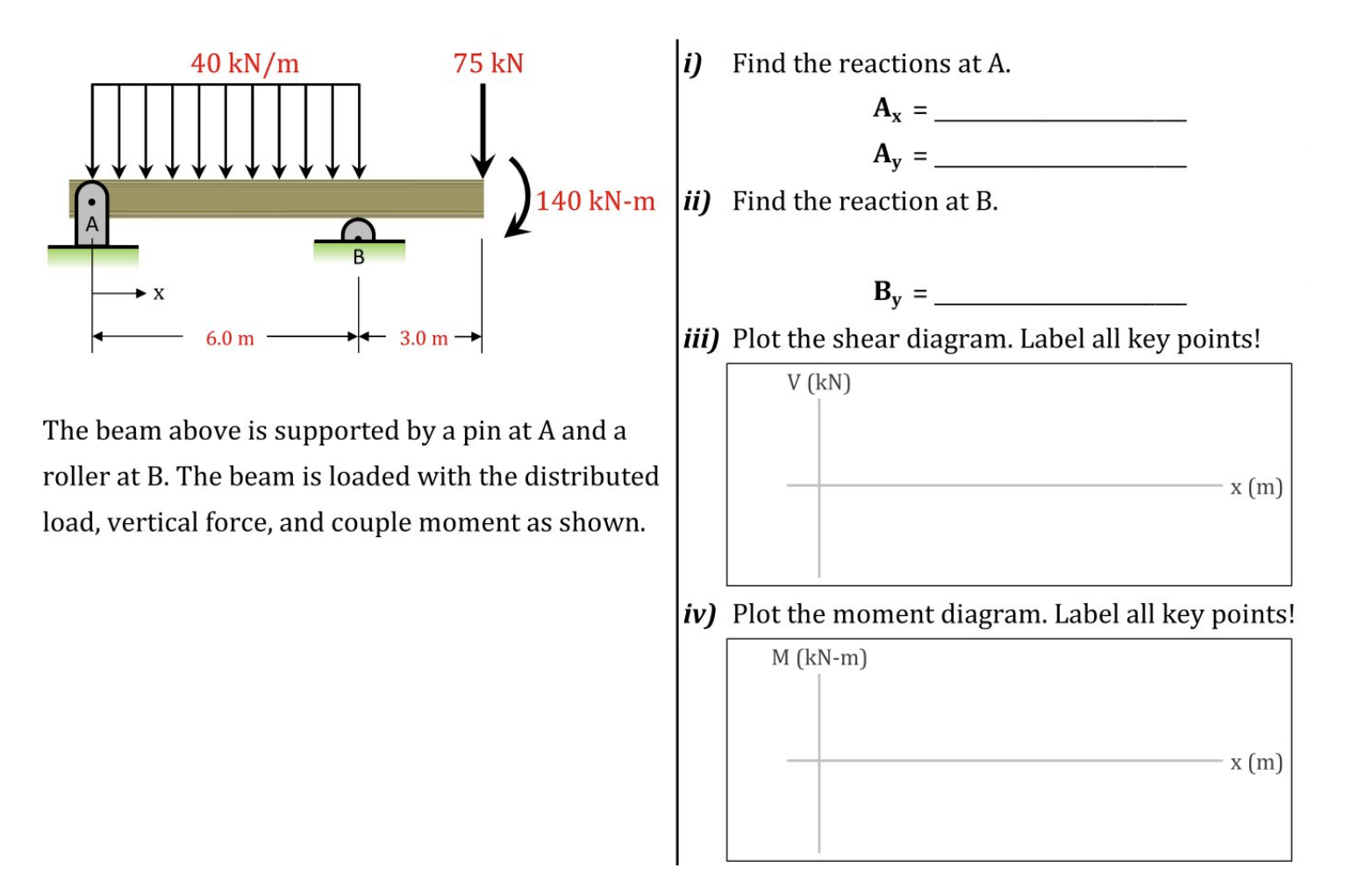

X 40 kN/m 6.0 m B 3.0 m 75 kN i) Find the reactions at A. Ax The beam above is supported by a pin at A and a roller at B. The beam is loaded with the distributed load, vertical force, and couple moment as shown. = Ay 140 kN-m ii) Find the reaction at B. = By iii) Plot the shear diagram. Label all key points! V (KN) = x (m) iv) Plot the moment diagram. Label all key points! M (kN-m) x (m)
