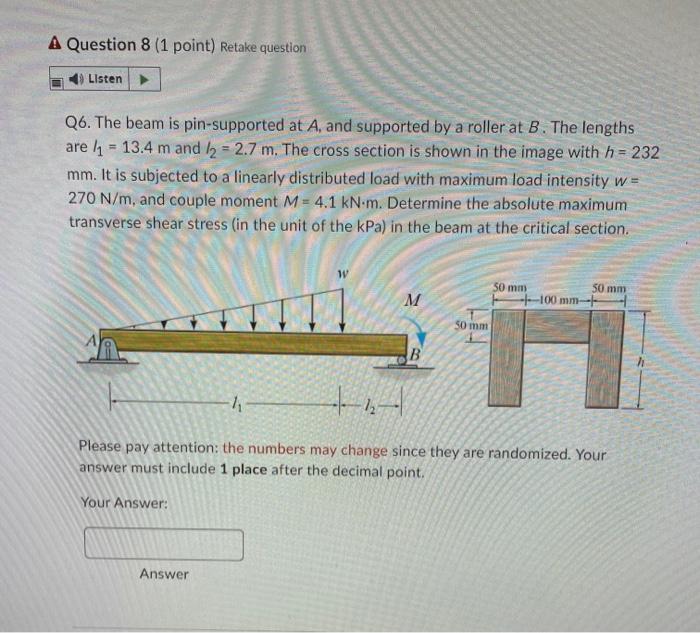

A Question 8 (1 point) Retake question ◄ Listen = Q6. The beam is pin-supported at A, and supported by a roller at B. Th

[answerhappygod]

A Question 8 1 Point Retake Question Listen Q6 The Beam Is Pin Supported At A And Supported By A Roller At B Th 1 (73.52 KiB) Viewed 31 times

A Question 8 (1 point) Retake question ◄ Listen = Q6. The beam is pin-supported at A, and supported by a roller at B. The lengths are ₁ 13.4 m and /2 = 2.7 m. The cross section is shown in the image with h = 232 mm. It is subjected to a linearly distributed load with maximum load intensity w = 270 N/m, and couple moment M = 4.1 kN-m. Determine the absolute maximum transverse shear stress (in the unit of the kPa) in the beam at the critical section. Answer W -h M B 50 mm 50 mm +-100 mm- +24 Please pay attention: the numbers may change since they are randomized. Your answer must include 1 place after the decimal point. Your Answer: 50 mm
