SF 19 IF M Reactions: RB = ka- * A beam is loaded and supported as shown, with F₁ = 1890 lb. F₂ = 2120 lb, M = 8980 ft l

[answerhappygod]

Sf 19 If M Reactions Rb Ka A Beam Is Loaded And Supported As Shown With F 1890 Lb F 2120 Lb M 8980 Ft L 1 (43.68 KiB) Viewed 63 times

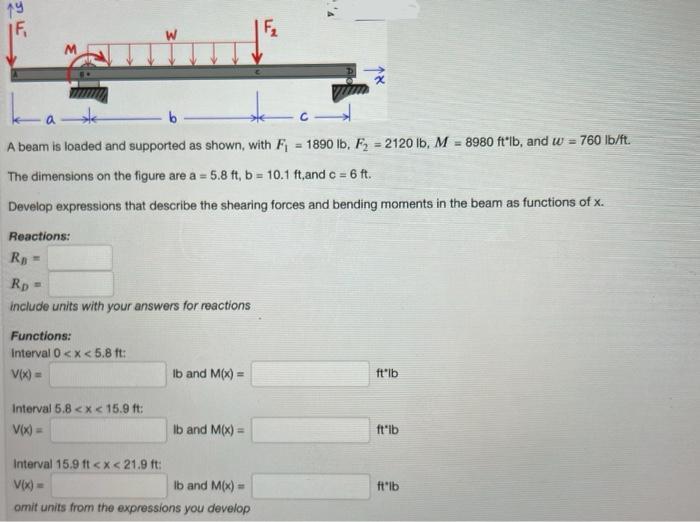

SF 19 IF M Reactions: RB = ka- * A beam is loaded and supported as shown, with F₁ = 1890 lb. F₂ = 2120 lb, M = 8980 ft lb, and w = 760 lb/ft. The dimensions on the figure are a = 5.8 ft, b= 10.1 ft,and c = 6 ft. Develop expressions that describe the shearing forces and bending moments in the beam as functions of x. Rp = include units with your answers for reactions Functions: Interval 0 < x < 5.8 ft: V(x) = Interval 5.8 <x< 15.9 ft: V(x)= Ib and M(x) = lb and M(x) = F₂ Interval 15.9 ft <x<21.9 ft: V(x)= Ib and M(x)== omit units from the expressions you develop 'A ft'lb ft'ib ft'lb
