A reinforced concrete beam is shown in the figure below Part A Why = 8 ft- VA211 vec 8 ft 0.75-in. diameter rods kip ft

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A reinforced concrete beam is shown in the figure below Part A Why = 8 ft- VA211 vec 8 ft 0.75-in. diameter rods kip ft

Post by answerhappygod »

A Reinforced Concrete Beam Is Shown In The Figure Below Part A Why 8 Ft Va211 Vec 8 Ft 0 75 In Diameter Rods Kip Ft 1
A Reinforced Concrete Beam Is Shown In The Figure Below Part A Why 8 Ft Va211 Vec 8 Ft 0 75 In Diameter Rods Kip Ft 1 (25.68 KiB) Viewed 49 times

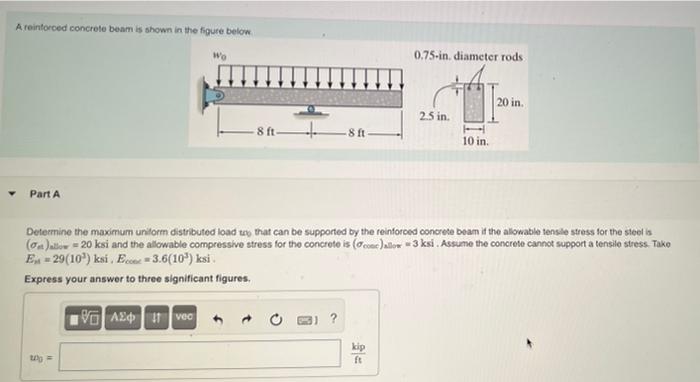

A reinforced concrete beam is shown in the figure below Part A Why = 8 ft- VA211 vec 8 ft 0.75-in. diameter rods kip ft 2.5 in. Determine the maximum uniform distributed load to that can be supported by t reinforced concrete beam if the allowable tensile stress for the steel is (a) allow = 20 ksi and the allowable compressive stress for the concrete is (conc) allow 3 ksi. Assume the concrete cannot support a tensile stress. Tako E = 29(10³) ksi, Econ=3.6(10³) ksi Express your answer to three significant figures. 10 in. 20 in.
