Air enters the compressor of an ideal Brayton refrigeration cycle at 1 atm, 480°R, with a volumetric flow rate of 50 ft/

[answerhappygod]

Air Enters The Compressor Of An Ideal Brayton Refrigeration Cycle At 1 Atm 480 R With A Volumetric Flow Rate Of 50 Ft 1 (58.27 KiB) Viewed 46 times

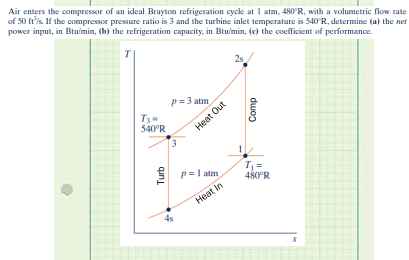

Air enters the compressor of an ideal Brayton refrigeration cycle at 1 atm, 480°R, with a volumetric flow rate of 50 ft/s. If the compressor pressure ratio is 3 and the turbine inlet temperature is 540 R, determine (a) the net power input, in Btu/min, (b) the refrigeration capacity, in Btu/min, (c) the coefficient of performance. T T₂= 540°R p=3 atm 4s Heat Out p=1 atm Heat In Comp T₁= 480°R
