A wood beam is reinforced with steel straps at its top and bottom as shown in the figure below (Figure 1). Figure 400 mm

[answerhappygod]

A Wood Beam Is Reinforced With Steel Straps At Its Top And Bottom As Shown In The Figure Below Figure 1 Figure 400 Mm 1 (30.96 KiB) Viewed 53 times

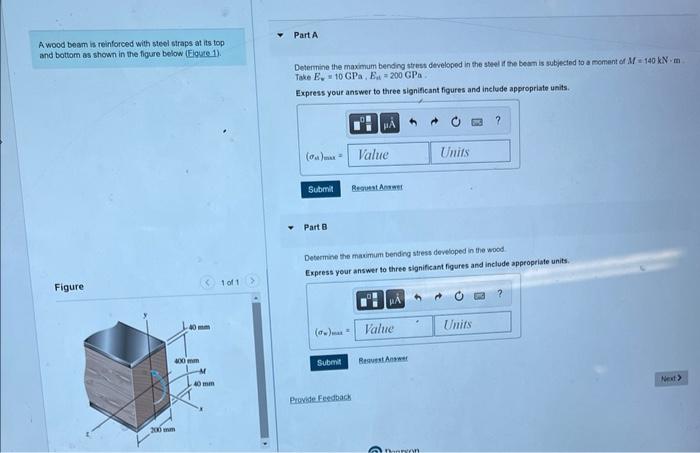

A wood beam is reinforced with steel straps at its top and bottom as shown in the figure below (Figure 1). Figure 400 mm 200 mm 40 mm 1 of 1 Part A Determine the maximum bending stress developed in the steel if the beam is subjected to a moment of M140 kN-m Take E 10 GPa, E-200 GPa Express your answer to three significant figures and include appropriate units. (a) Value Submit Part B PA Submit Request Answer Provide Feedback Determine the maximum bending stress developed in the wood Express your answer to three significant figures and include appropriate units. A Value 4 Reavest Answer Units Inern ? Units Next >
