The wooden section of the beam is reinforced with two steel plates as shown in the figure below. The beam is subjected t

Post by answerhappygod »

The Wooden Section Of The Beam Is Reinforced With Two Steel Plates As Shown In The Figure Below The Beam Is Subjected T 1
The Wooden Section Of The Beam Is Reinforced With Two Steel Plates As Shown In The Figure Below The Beam Is Subjected T 1 (38.21 KiB) Viewed 71 times

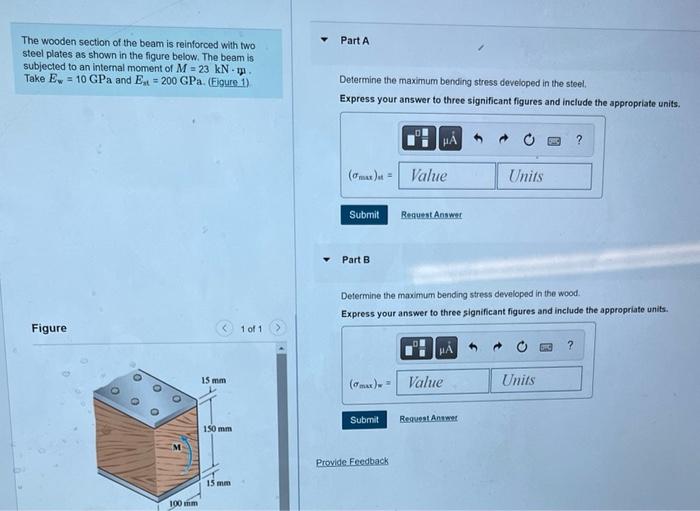

The wooden section of the beam is reinforced with two steel plates as shown in the figure below. The beam is subjected to an internal moment of M23 kN-m. Take Ew= 10 GPa and E 200 GPa. (Eigure 1) Figure 100 mm 15 mm 150 mm 15 mm 1 of 1 Y Part A Determine the maximum bending stress developed in the steel. Express your answer to three significant figures and include the appropriate units. (max)t = Submit Part B (max) = Submit HA Provide Feedback Value Request Answer Determine the maximum bending stress developed in the wood. Express your answer to three significant figures and include the appropriate units. HA Value Units Request Answer Units ? ?
