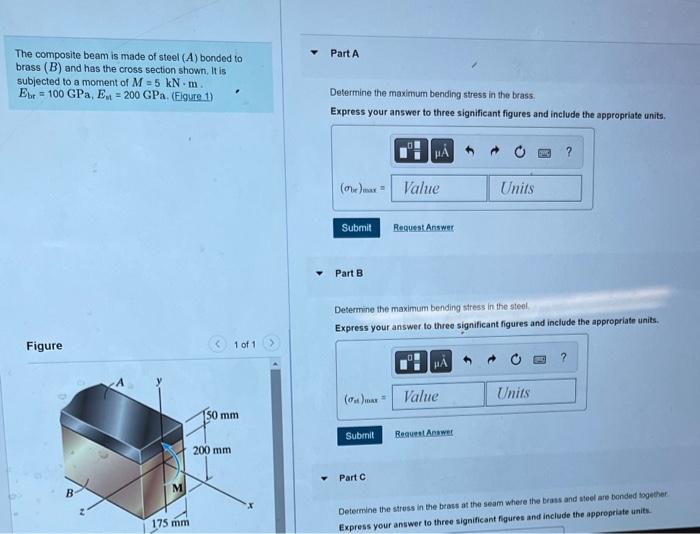

The composite beam is made of steel (A) bonded to brass (B) and has the cross section shown. It is subjected to a moment of M=5 kN-m. Ebr 100 GPa, Est = 200 GPa. (Eigure 1) = Figure M 175 mm 1 of 1 50 mm 200 mm Part A Determine the maximum bending stress in the brass. Express your answer to three significant figures and include the appropriate units. HA (be)max Submit Part B. Value Submit Request Answer Determine the maximum bending stress in the steel. Express your answer to three significant figures and include the appropriate units. Part C (0) Value PA Units Request Answer Units ? Determine the stress in the brass at the seam where the brass and steel are bonded together Express your answer to three significant figures and include the appropriate units.

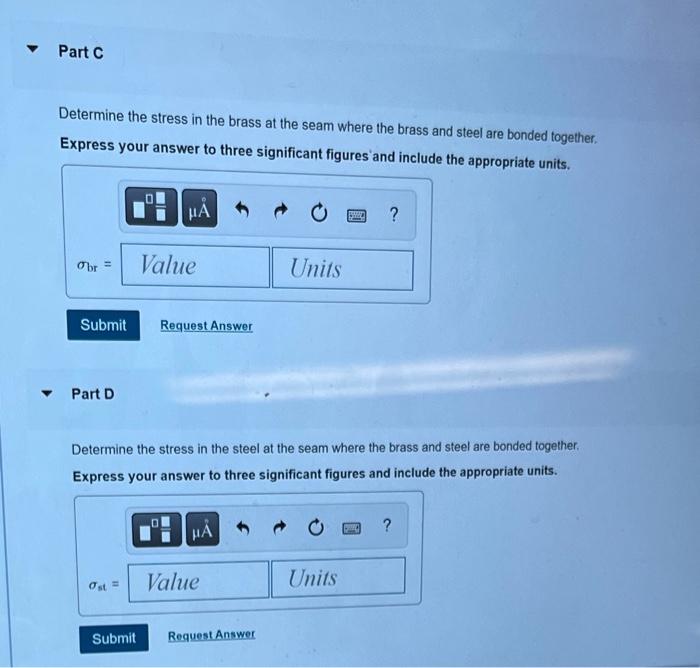

Part C Determine the stress in the brass at the seam where the brass and steel are bonded together. Express your answer to three significant figures and include the appropriate units. Obr = Submit ▾ Part D μA Ost= Value Request Answer μA Determine the stress in the steel at the seam where the brass and steel are bonded together. Express your answer to three significant figures and include the appropriate units. Value Submit Request Answer Units → BUND Units ? ?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
