7. The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fx=300 lbf, Fy=250 l

[answerhappygod]

7 The Cantilevered Bar In The Figure Is Made From A Ductile Material And Is Statically Loaded With Fx 300 Lbf Fy 250 L 1 (41.52 KiB) Viewed 55 times

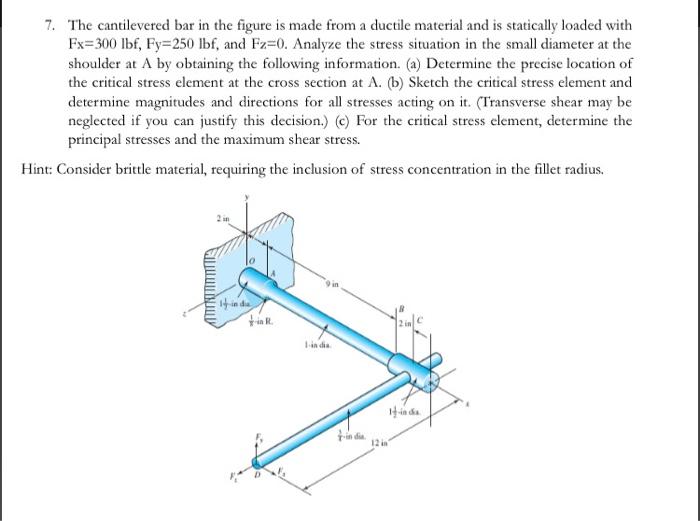

7. The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fx=300 lbf, Fy=250 lbf, and Fz=0. Analyze the stress situation in the small diameter at the shoulder at A by obtaining the following information. (a) Determine the precise location of the critical stress element at the cross section at A. (b) Sketch the critical stress element and determine magnitudes and directions for all stresses acting on it. (Transverse shear may be neglected if you can justify this decision.) (c) For the critical stress element, determine the principal stresses and the maximum shear stress. Hint: Consider brittle material, requiring the inclusion of stress concentration in the fillet radius. 2 in 14 in de Fink. 1-india. 12 in
