1. A hollow steel shaft is to transmit 4200 N.m of torque and is to be sized so that the torsional stress does not excee

Post by answerhappygod »

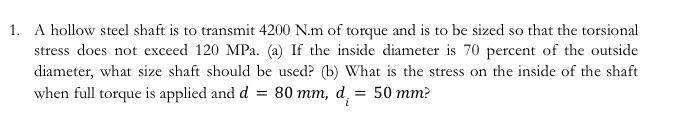

1 A Hollow Steel Shaft Is To Transmit 4200 N M Of Torque And Is To Be Sized So That The Torsional Stress Does Not Excee 1
1 A Hollow Steel Shaft Is To Transmit 4200 N M Of Torque And Is To Be Sized So That The Torsional Stress Does Not Excee 1 (17.59 KiB) Viewed 51 times
1. A hollow steel shaft is to transmit 4200 N.m of torque and is to be sized so that the torsional stress does not exceed 120 MPa. (a) If the inside diameter is 70 percent of the outside diameter, what size shaft should be used? (b) What is the stress on the inside of the shaft when full torque is applied and d = 80 mm, d = 50 mm?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
