Question 1 Complete the following for the pendulum bob shown below. (5 points) a) Draw the free body diagram for pendulu

Post by answerhappygod »

Question 1 Complete The Following For The Pendulum Bob Shown Below 5 Points A Draw The Free Body Diagram For Pendulu 1
Question 1 Complete The Following For The Pendulum Bob Shown Below 5 Points A Draw The Free Body Diagram For Pendulu 1 (202.79 KiB) Viewed 70 times

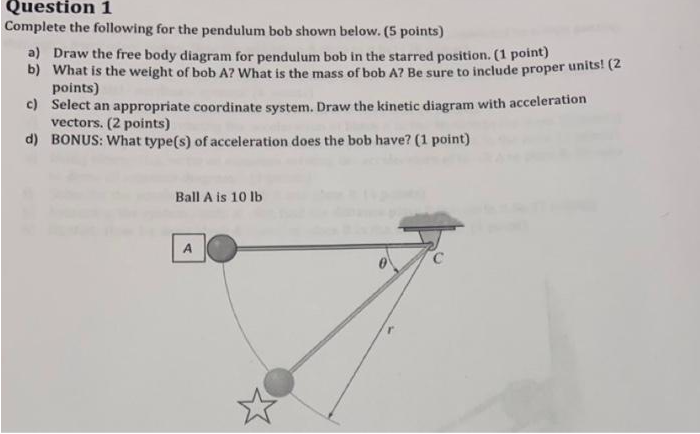

Question 1 Complete the following for the pendulum bob shown below. (5 points) a) Draw the free body diagram for pendulum bob in the starred position. (1 point) b) What is the weight of bob A? What is the mass of bob A? Be sure to include proper units! (2 points) c) Select an appropriate coordinate system. Draw the kinetic diagram with acceleration vectors. (2 points) d) BONUS: What type(s) of acceleration does the bob have? (1 point) Ball A is 10 lb A
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
