The Rigid Beam Is Supported By A Pin At C And An A992 Steel Guy Wire Ab Of Length 10 Ft Horizontal Beam C B Of Length 1 1 (132.09 KiB) Viewed 49 times

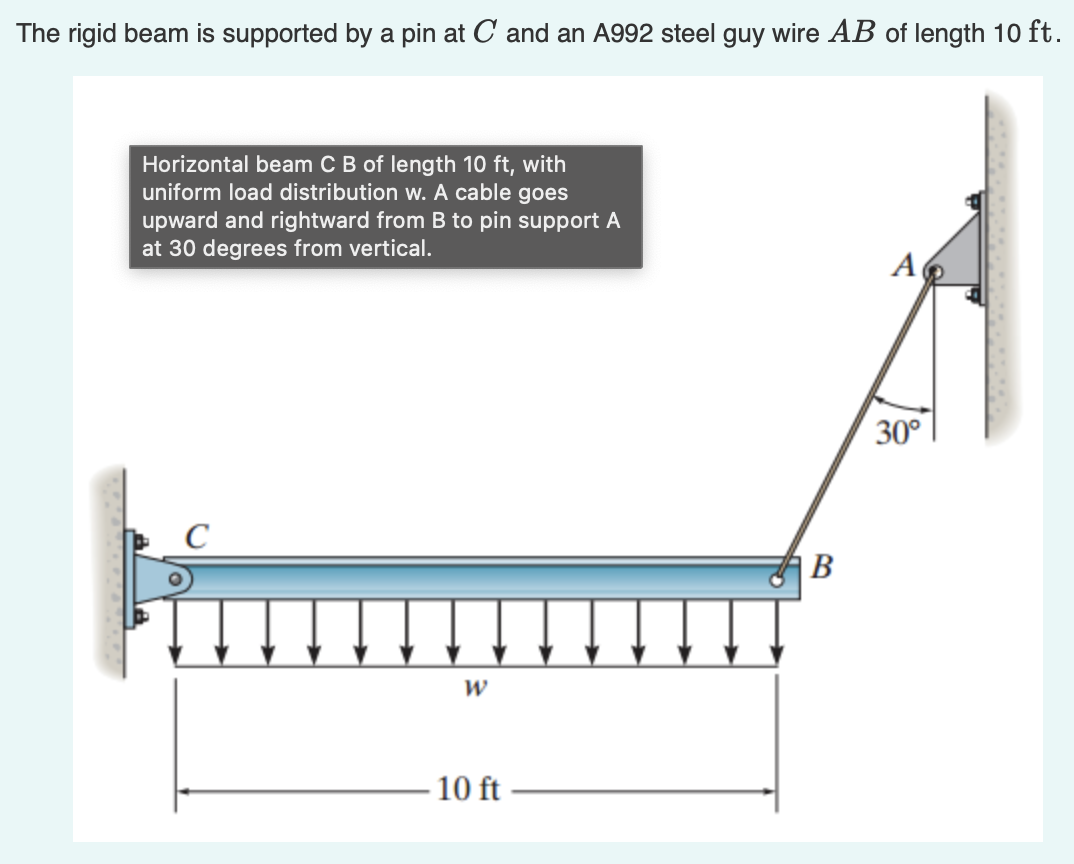

The rigid beam is supported by a pin at C and an A992 steel guy wire AB of length 10 ft. Horizontal beam C B of length 10 ft, with uniform load distribution w. A cable goes upward and rightward from B pin support A at 30 degrees from vertical. W 10 ft B A 30°
If the wire has a diameter of 1 in., determine how much it stretches when a distributed load of w = 300 lb/ft acts on the beam. The wire remains elastic. Use Est = 29.0(10³) ksi. Express your answer to three significant figures and include appropriate units. µÅ SAB = |0.548 in Submit Previous Answers Request Answer ? X Incorrect; Try Again; 5 attempts remaining
