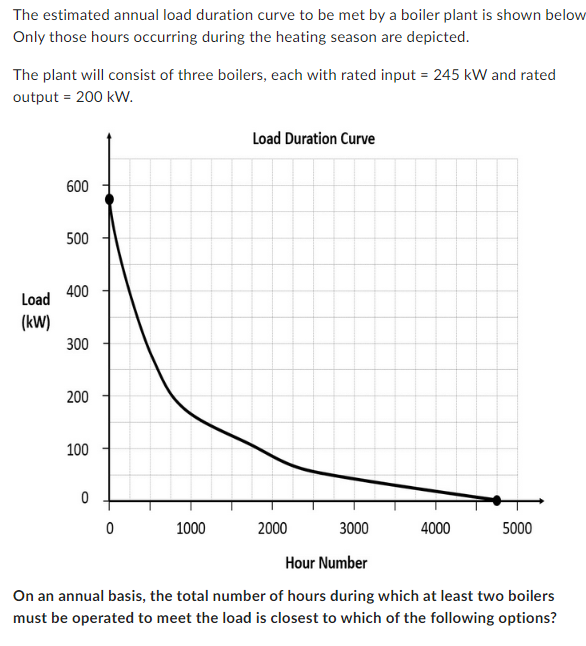

The estimated annual load duration curve to be met by a boiler plant is shown below Only those hours occurring during the heating season are depicted. The plant will consist of three boilers, each with rated input = 245 kW and rated output = 200 kW. Load (kW) 600 500 400 300 200 100 0 0 1000 Load Duration Curve 2000 4000 3000 Hour Number On an annual basis, the total number of hours during which at least two boilers must be operated to meet the load is closest to which of the following options? 5000

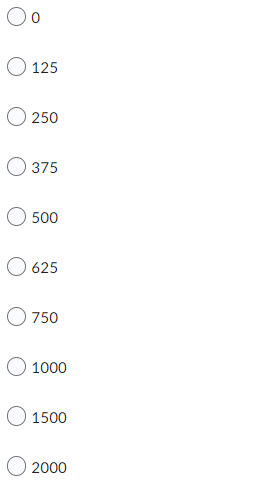

125 250 375 500 625 750 1000 1500 O2000
