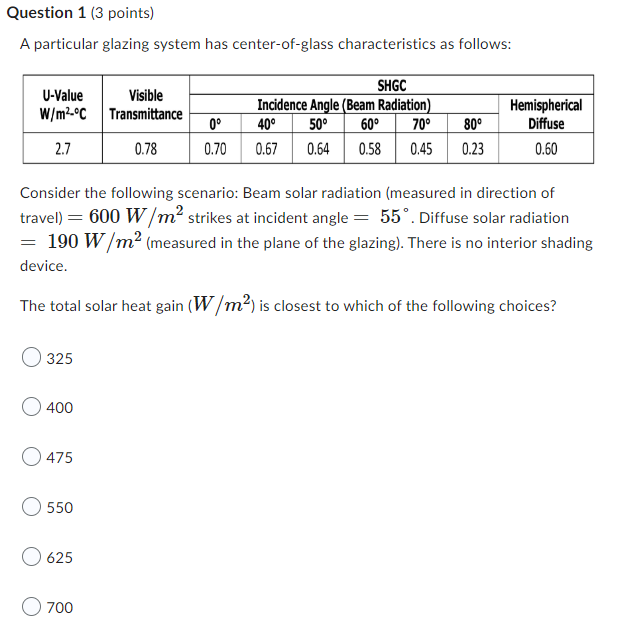

Question 1 (3 points) A particular glazing system has center-of-glass characteristics as follows: U-Value W/m²-°C 2.7 32

[answerhappygod]

Question 1 3 Points A Particular Glazing System Has Center Of Glass Characteristics As Follows U Value W M C 2 7 32 1 (54.52 KiB) Viewed 48 times

Question 1 (3 points) A particular glazing system has center-of-glass characteristics as follows: U-Value W/m²-°C 2.7 325 400 475 Consider the following scenario: Beam solar radiation (measured in direction of travel) = 600 W/m² strikes at incident angle = 55°. Diffuse solar radiation = 190 W/m² (measured in the plane of the glazing). There is no interior shading device. The total solar heat gain (W/m²) is closest to which of the following choices? 550 625 Visible Transmittance 0.78 700 SHGC Incidence Angle (Beam Radiation) 50⁰ 60⁰ 70⁰ 0⁰ 40° 0.70 0.67 0.64 0.58 0.45 80⁰ 0.23 Hemispherical Diffuse 0.60
