Draw the shear and bending moment diagrams for the beam and the loads shown in Fig. figure, and determine the maximum ab

Post by answerhappygod »

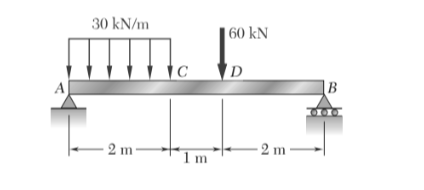

Draw the shear and bending moment diagrams for the beam and theloads shown in Fig.figure, and determine the maximum absolute value a) of the shearstress, b) of the bending moment.
Draw The Shear And Bending Moment Diagrams For The Beam And The Loads Shown In Fig Figure And Determine The Maximum Ab 1
Draw The Shear And Bending Moment Diagrams For The Beam And The Loads Shown In Fig Figure And Determine The Maximum Ab 1 (13.04 KiB) Viewed 46 times
30 kN/m -2m- C 1 m 60 kN D -2 m- B
