Water is flowing steadily through the 180° elbow shown. The water discharges to atmospheric pressure. Assume properties

Post by answerhappygod »

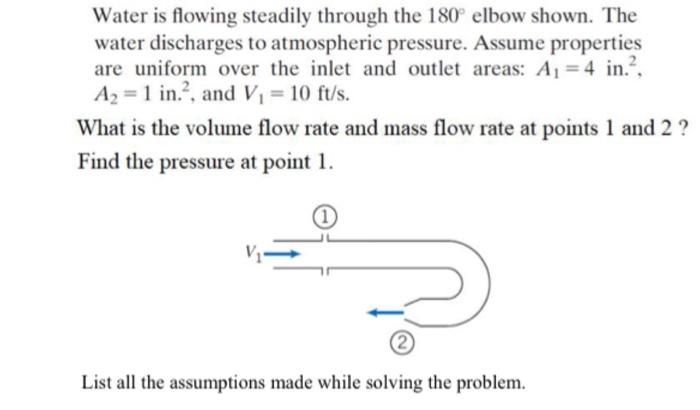

Water Is Flowing Steadily Through The 180 Elbow Shown The Water Discharges To Atmospheric Pressure Assume Properties 1
Water Is Flowing Steadily Through The 180 Elbow Shown The Water Discharges To Atmospheric Pressure Assume Properties 1 (25.86 KiB) Viewed 46 times
Water is flowing steadily through the 180° elbow shown. The water discharges to atmospheric pressure. Assume properties are uniform over the inlet and outlet areas: A₁ = 4 in.², A₂ = 1 in.², and V₁ = 10 ft/s. What is the volume flow rate and mass flow rate at points 1 and 2 ? Find the pressure at point 1. List all the assumptions made while solving the problem.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
