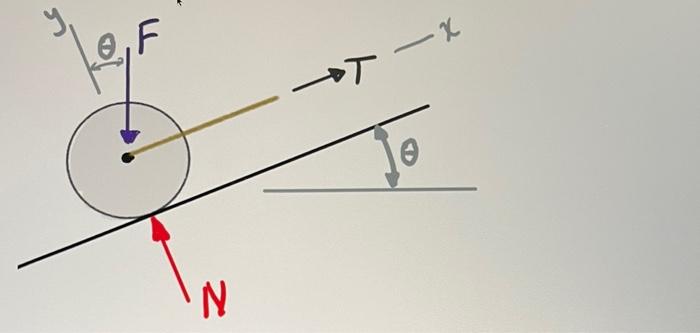

The figure above depicts a wheel on a smooth ramp. The ramp is at a slope of 0 = 18 degrees. There is a rope acting along the inclined x axis shown. The rope has a tension of T. There is a force of F = 922 lb acting vertically downward. As friction is ignored, the ground is only capable of developing a normal force, N, as shown. Using the concept of the equilibrium of a rigid particle, what is the value of the force N?
