Learning Goal: The two square cross sections shown below (Figure 1) are each subjected to a vertical shear force, V. The
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Learning Goal: The two square cross sections shown below (Figure 1) are each subjected to a vertical shear force, V. The

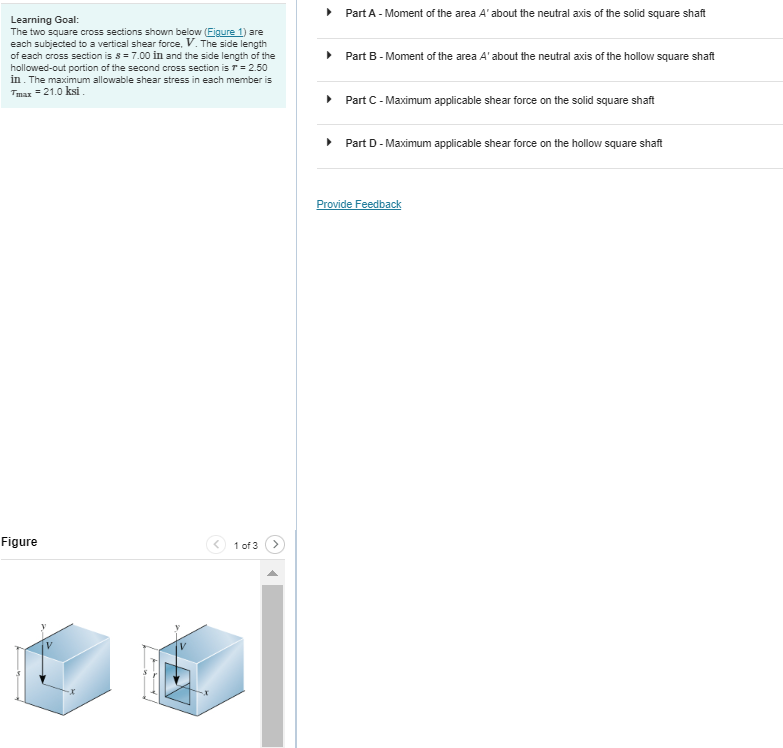

Learning Goal: The two square cross sections shown below (Figure 1) are each subjected to a vertical shear force, V. The side length of each cross section is s = 7.00 in and the side length of the hollowed-out portion of the second cross section is = 2.50 in. The maximum allowable shear stress in each member is Tmax = 21.0 ksi. Figure 1 of 3 ▶ ▶ ▶ ▶ Part A - Moment of the area A' about the neutral axis of the solid square shaft Part B - Moment of the area A' about the neutral axis of the hollow square shaft Part C-Maximum applicable shear force on the solid square shaft Part D-Maximum applicable shear force on the hollow square shaft Provide Feedback
