Learning Goal: As shown, a channel is subjected to a vertical shear force of V = 88.0 kN and has dimensions b = 40.0 mm,

[answerhappygod]

Learning Goal As Shown A Channel Is Subjected To A Vertical Shear Force Of V 88 0 Kn And Has Dimensions B 40 0 Mm 1 (32.72 KiB) Viewed 55 times

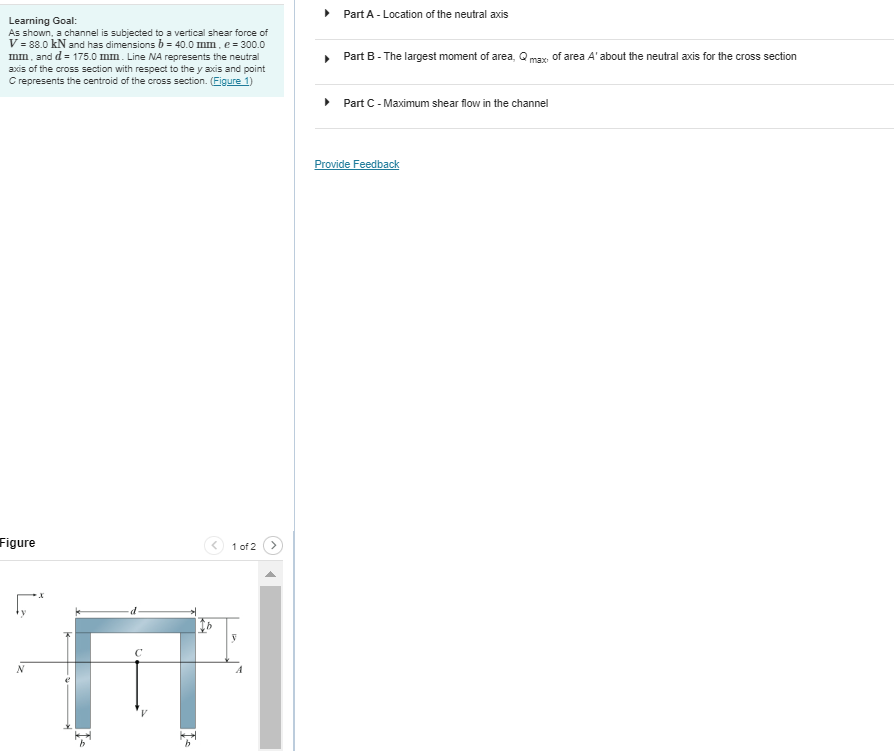

Learning Goal: As shown, a channel is subjected to a vertical shear force of V = 88.0 kN and has dimensions b = 40.0 mm, e = 300.0 mm, and d = 175.0 mm. Line NA represents the neutral axis of the cross section with respect to the y axis and point C represents the centroid of the cross section. (Figure 1) Figure ها N C +1| 1 of 2 ▶ ▶ ▶ Part A - Location of the neutral axis Part B - The largest moment of area, Q max of area A' about the neutral axis for the cross section Part C-Maximum shear flow in the channel Provide Feedback
