Learning Goal: The two cross sections shown below, (a) and (b), are subjected to a vertical shear force as shown. The me
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Learning Goal: The two cross sections shown below, (a) and (b), are subjected to a vertical shear force as shown. The me

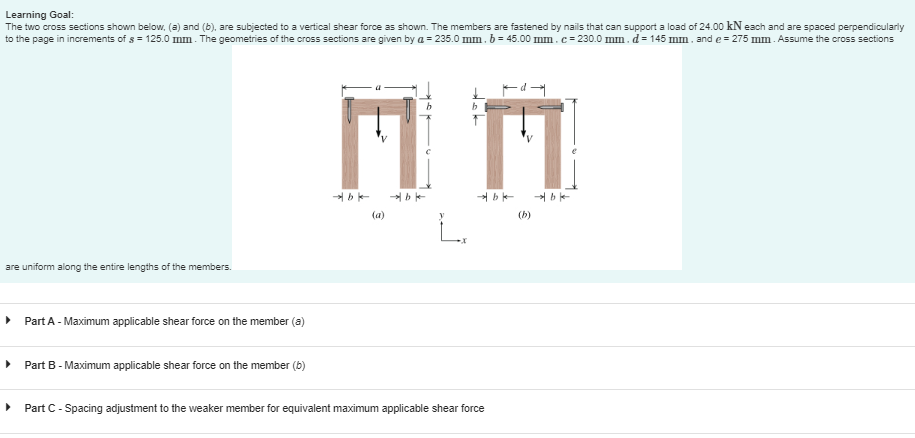

Learning Goal: The two cross sections shown below, (a) and (b), are subjected to a vertical shear force as shown. The members are fastened by nails that can support a load of 24.00 kN each and are spaced perpendicularly to the page in increments of s = 125.0 mm. The geometries of the cross sections are given by a = 235.0 mm. b = 45.00 mm. c = 230.0 mm. d = 145 mm. and e= 275 mm. Assume the cross sections are uniform along the entire lengths of the members. ▶ Part A - Maximum applicable shear force on the member (a) ▶ Part B - Maximum applicable shear force on the member (6) bk (a) bk b b ▸ Part C-Spacing adjustment to the weaker member for equivalent maximum applicable shear force bk d b
