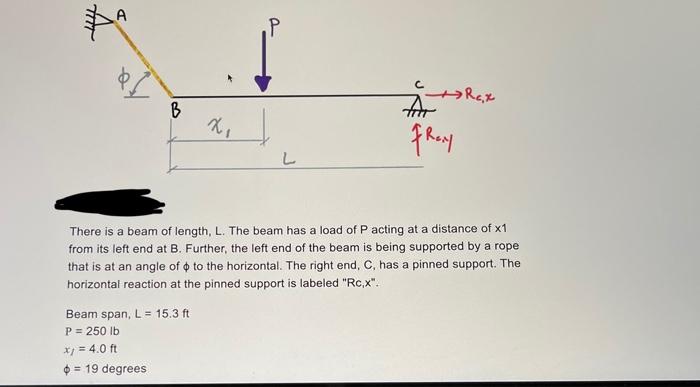

A B Beam span, L= 15.3 ft P = 250 lb x = 4.0 ft = 19 degrees * X₁ L for FRO There is a beam of length, L. The beam has a load of P acting at a distance of x1 from its left end at B. Further, the left end of the beam is being supported by a rope that is at an angle of $ to the horizontal. The right end, C, has a pinned support. The horizontal reaction at the pinned support is labeled "Rc,x". Rex

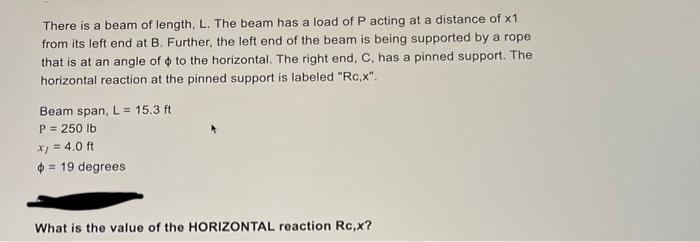

There is a beam of length, L. The beam has a load of P acting at a distance of x1 from its left end at B. Further, the left end of the beam is being supported by a rope that is at an angle of $ to the horizontal. The right end, C, has a pinned support. The horizontal reaction at the pinned support is labeled "Rc,x". Beam span,. L = 15.3 ft P = 250 lb x₁ = 4.0 ft $ = 19 degrees What is the value of the HORIZONTAL reaction Rc,x?
