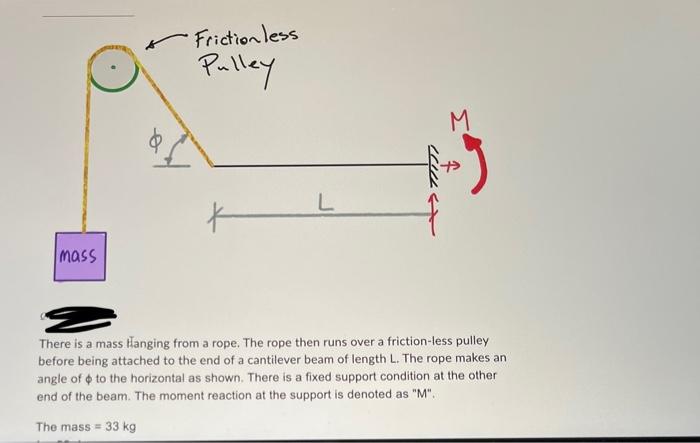

mass Friction less Pulley K L time M There is a mass Hanging from a rope. The rope then runs over a friction-less pulley before being attached to the end of a cantilever beam of length L. The rope makes an angle of to the horizontal as shown. There is a fixed support condition at the other end of the beam. The moment reaction at the support is denoted as "M". The mass = 33 kg

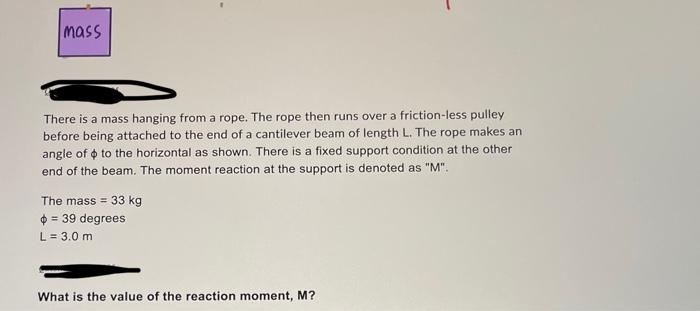

mass There is a mass hanging from a rope. The rope then runs over a friction-less pulley before being attached to the end of a cantilever beam of length L. The rope makes an angle of to the horizontal as shown. There is a fixed support condition at the other end of the beam. The moment reaction at the support is denoted as "M". The mass = 33 kg $ = 39 degrees L = 3.0 m What is the value of the reaction moment, M?
